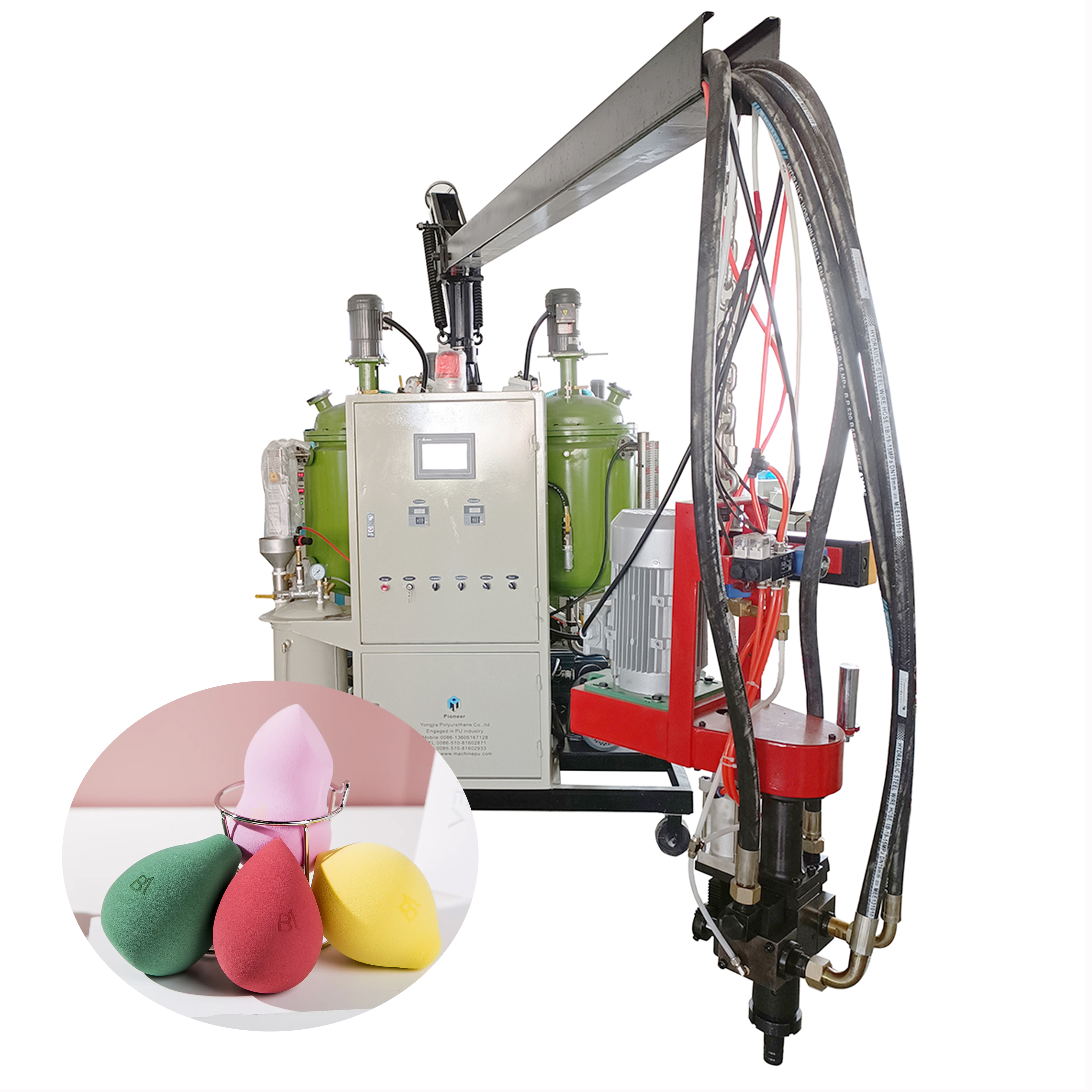

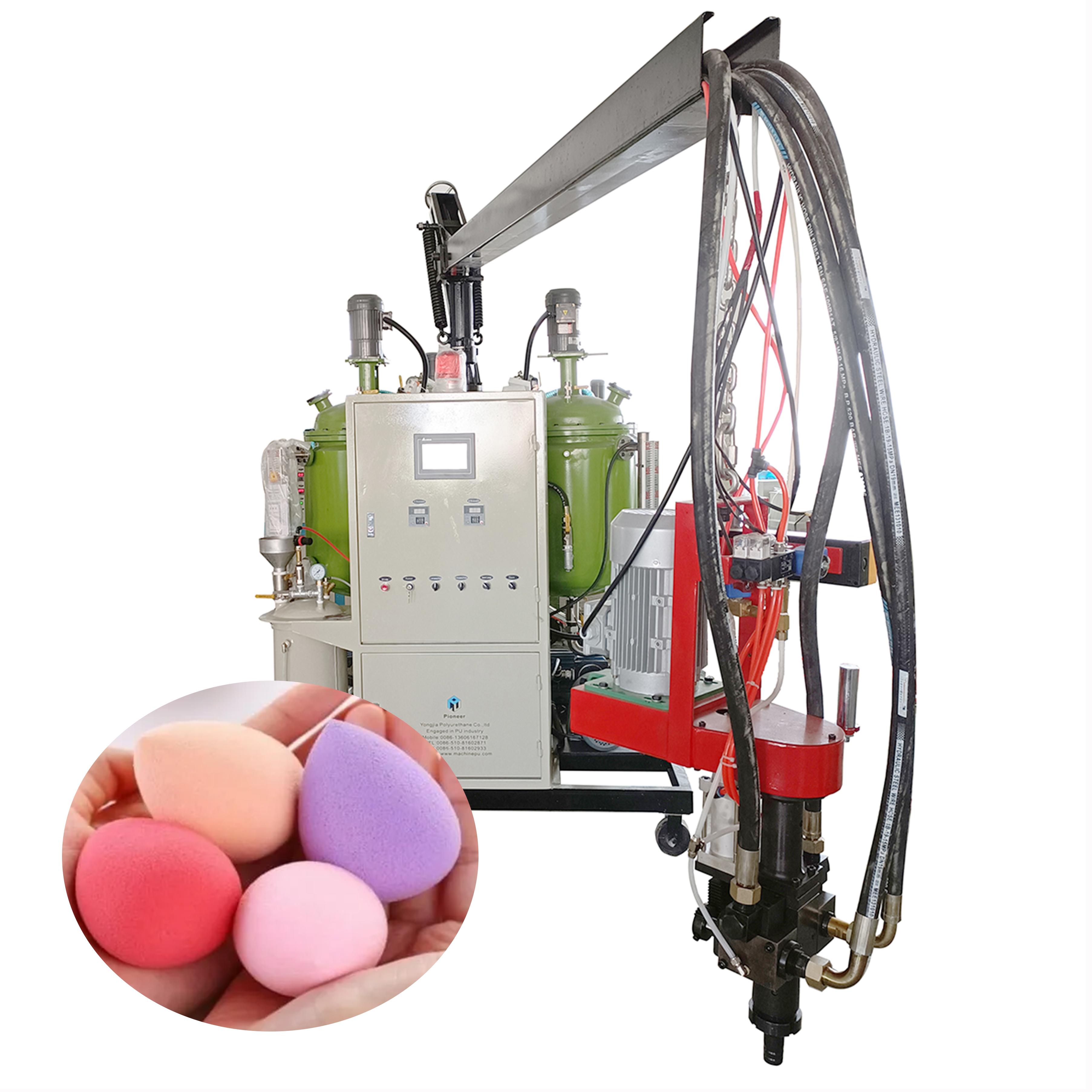

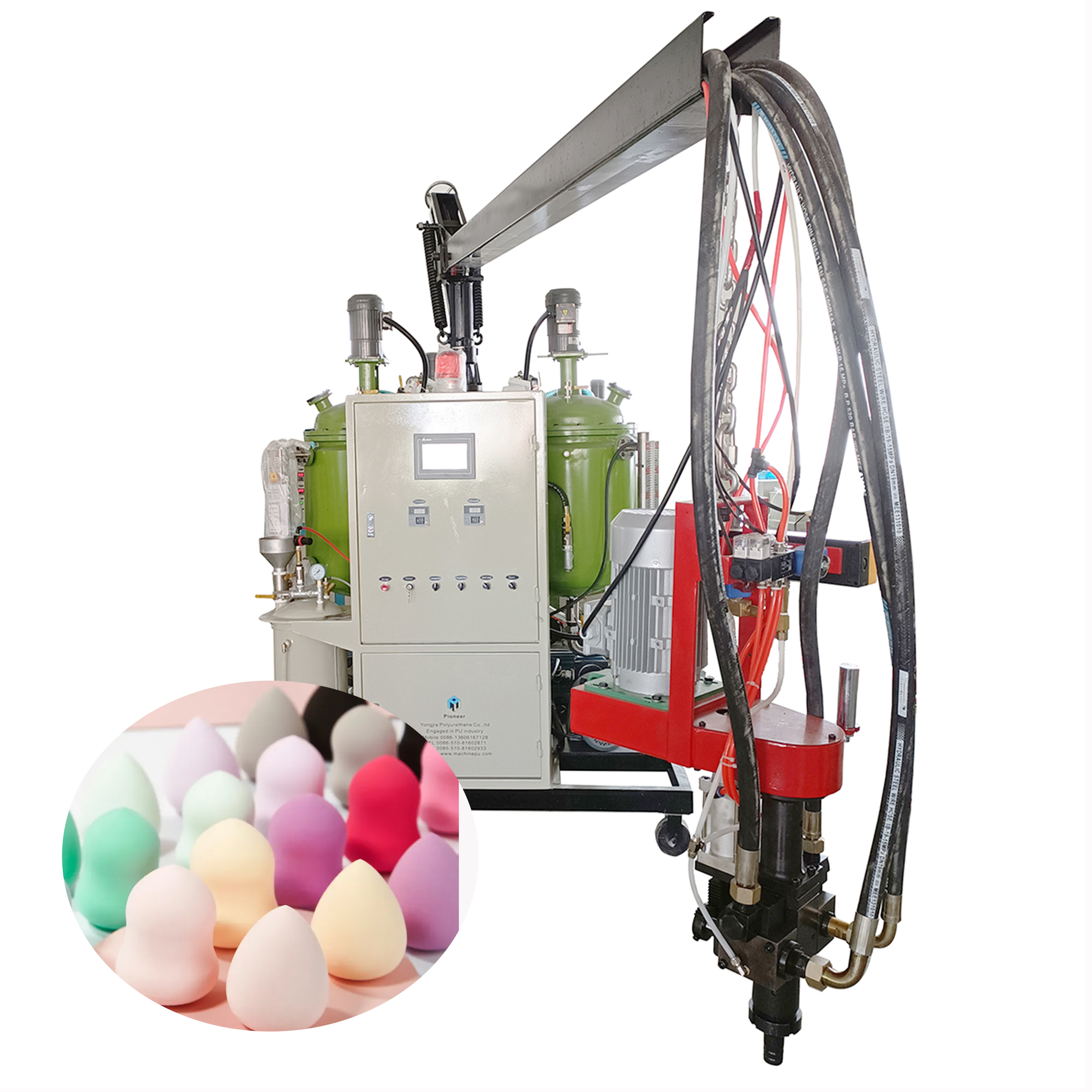

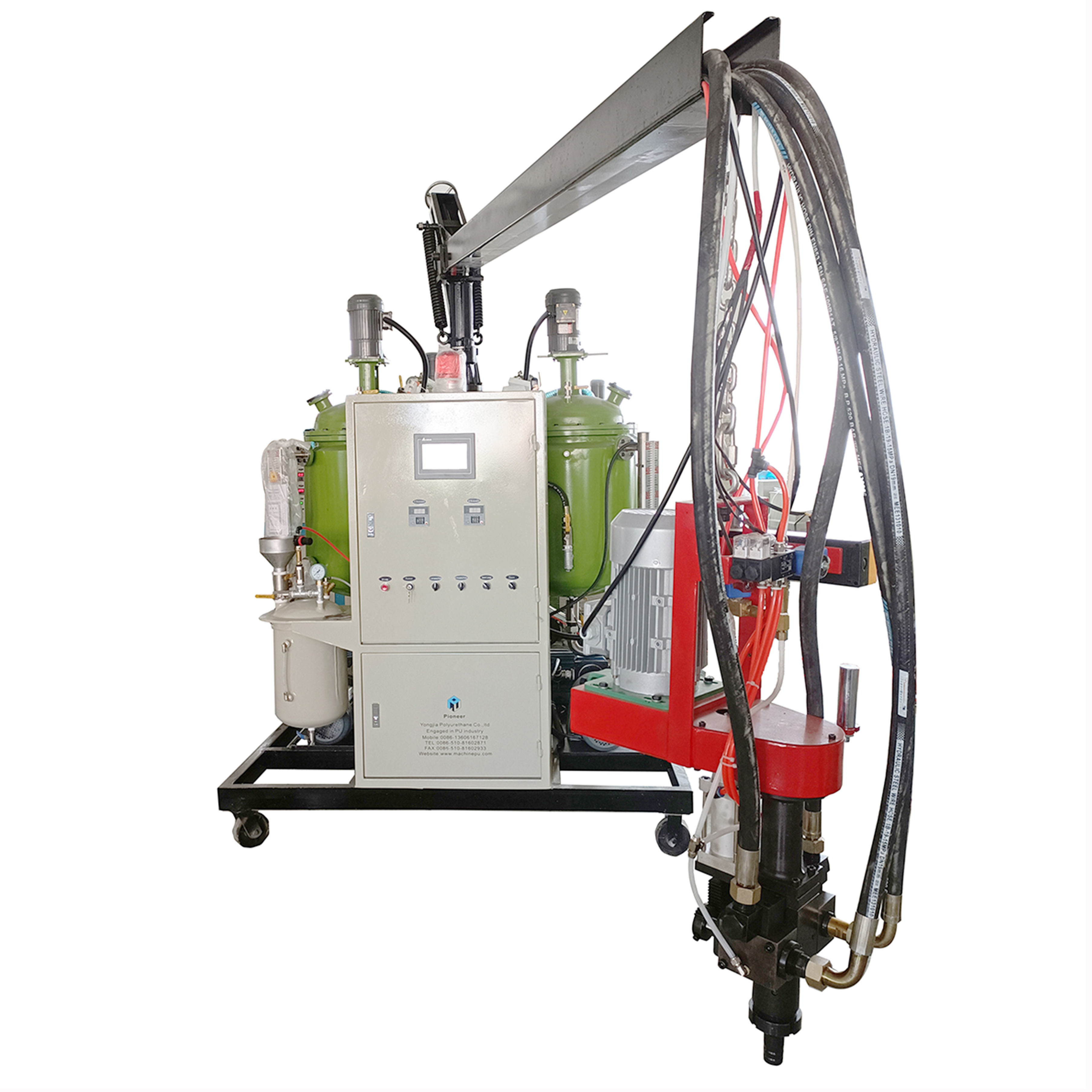

Beauty Egg Low Pressure PU Foam Injection Machine
Low-pressure polyurethane foaming machines support a variety of applications where lower volumes, higher viscosities, or different viscosity levels between the various chemicals used in the mixture are required. So when multiple chemical streams require different handling prior to mixing, low-pressure polyurethane foaming machines are also an ideal choice.
Feature:
1. The metering pump has the advantages of high temperature resistance, low speed, high precision and accurate proportioning. And metering accuracy error not more than ±0.5%.
2. Frequency conversion motor with frequency conversion to adjust the flow and pressure of raw materials. It has the advantages of high precision, simple and fast proportional adjustment.
3. low-pressure machine can be loaded with options such as automatic replenishment, high-viscosity packing pump, shortage alarm, automatic cycle of stopping, water cleaning of mixing head.

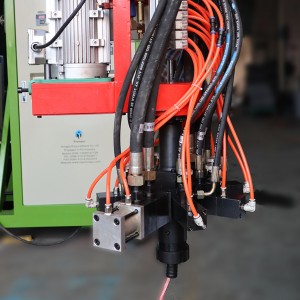

4. using conical tooth type mixing head壯陽藥
. This mixing head is simple and practical, mixing evenly and will not produce bubbles.
5. Adopt advanced PLC control system, automatic cleaning and air flushing, stable performance, strong operability, automatic identification, diagnosis and alarm when abnormal, abnormal factor display, etc.

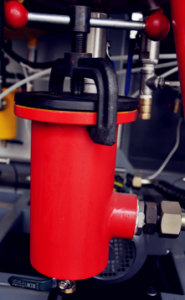

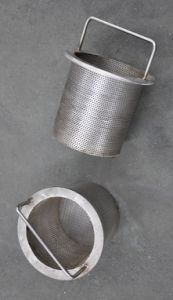

The filter is to filter out the impurities in the raw materials entering the metering pump to prevent the impurities from blocking the metering pump, pipeline, gun nozzle, etc. and to prevent the fluctuation of pressure and flow.

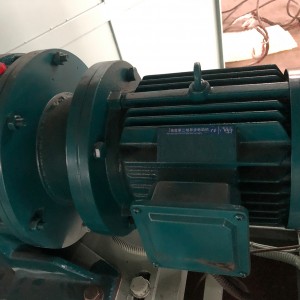

The metering system consists of measuring feed pipe, pump discharge pipe, drive motor, coupling, frame, pressure sensor, drain valve, gear metering pump, metering pump feed pipe, and three-way ball valve.
| Item | Technical parameter |
| Foam application | Rigid Foam Shutter Door |
| Raw material viscosity(22℃) | POL ～3000CPS ISO ～1000MPas |
| Injection flow rate | 6.2-25g/s |
| Mixing ratio range | 100:28～48 |
| Mixing head | 2800-5000rpm, forced dynamic mixing |
| Tank Volume | 120L |
| Input power | Three-phase five-wire 380V 50HZ |
| Rated power | About 11KW |
| Swing arm | Rotatable 90°swing arm, 2.3m (length customizable) |
| Volume | 4100(L)*1300(W)*2300(H)mm, swing arm included |
| Color( customizable) | Cream-colored/orange/deep sea blue |
| Weight | About 1000Kg |
