PU Gasket Dispensing Machine for FIPG Seals

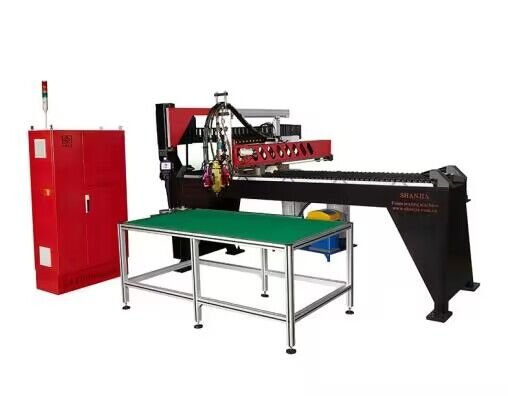

PU gasket dispensing machine

Yongjia Polyurethane

PU Gasket Dispensing Machine for FIPG Seals

Apply two-component PU directly to refrigerator doors, electrical cabinets and air-filter frames to form a continuous FIPG seal. Send your part drawing, gasket cross-section, material system and target output; Yongjia will confirm the travel range, dispensing rate, mixing ratio and automation configuration before quotation.

Yongjia Polyurethane

Core Accessories of PU gasket dispensing machine

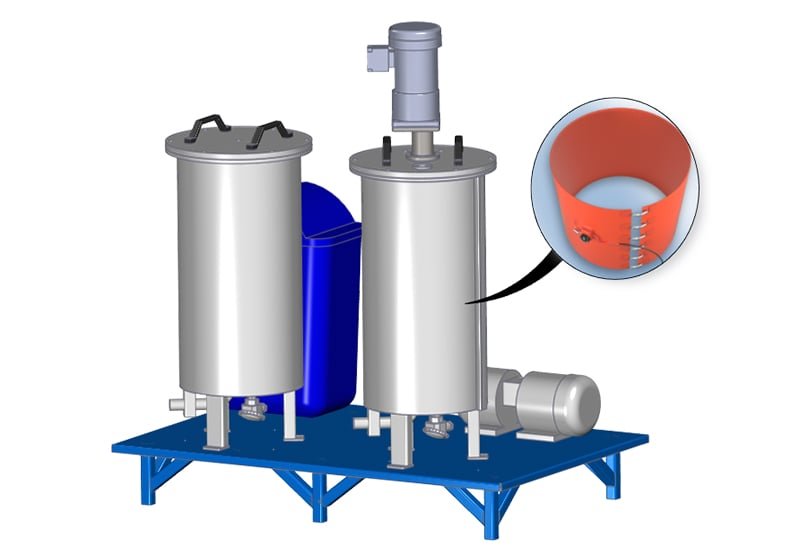

material tank

Material tank

Double-walled stainless steel tanks with built-in heating and stirring devices ensure constant raw material temperature and uniform mixing, preventing crystallization and precipitation.

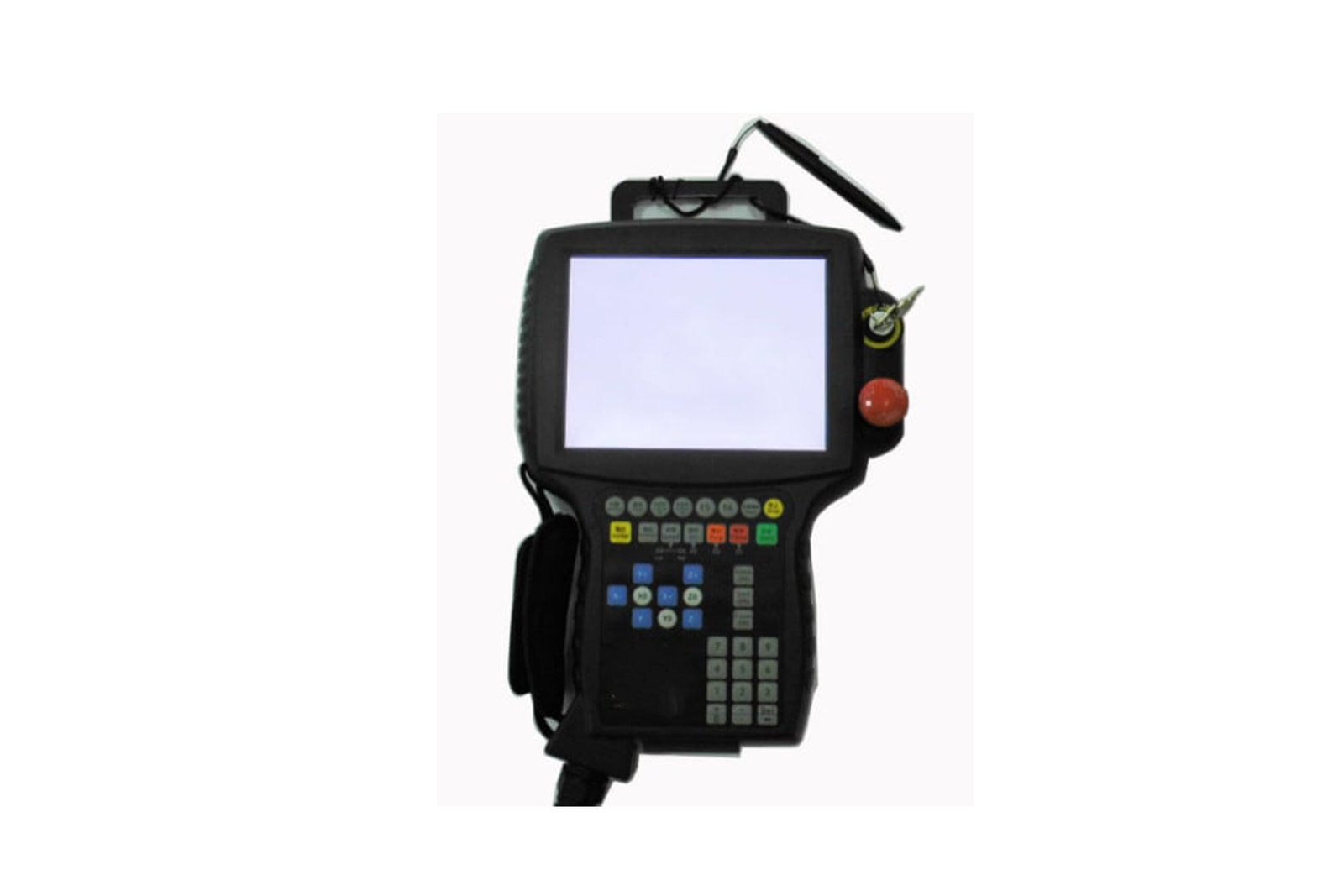

control system of PU Gasket Dispensing Machine

control system

Equipped with advanced PLC control system, the operation interface is intuitive, and multiple sets of process parameters can be stored to achieve automated production and ensure accurate and stable casting.

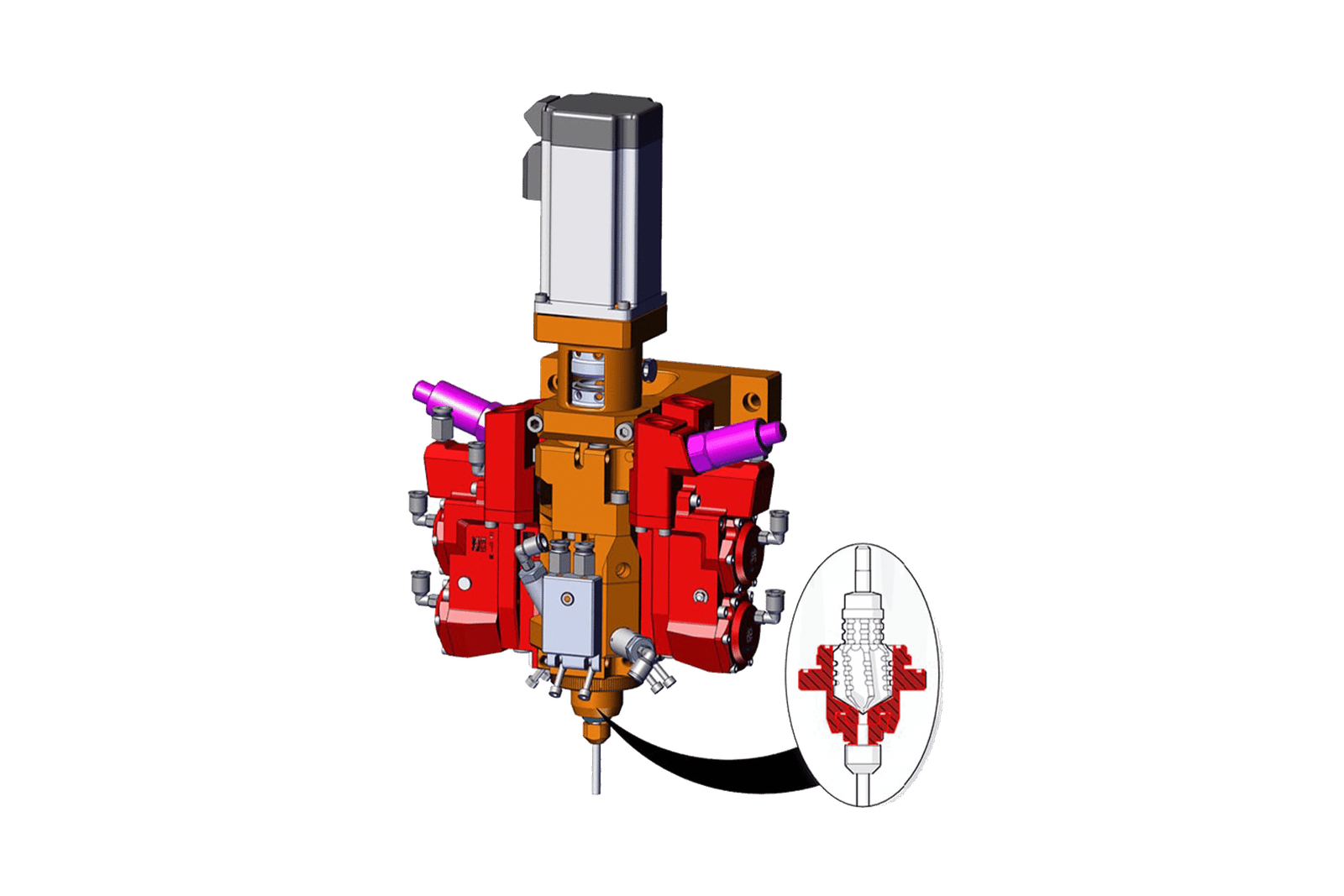

mixing head

mixing head

The mixing head is precision machined to provide high shear and uniform mixing capabilities. The mixing-head cleaning method and maintenance interval are confirmed for the selected material system and production plan.

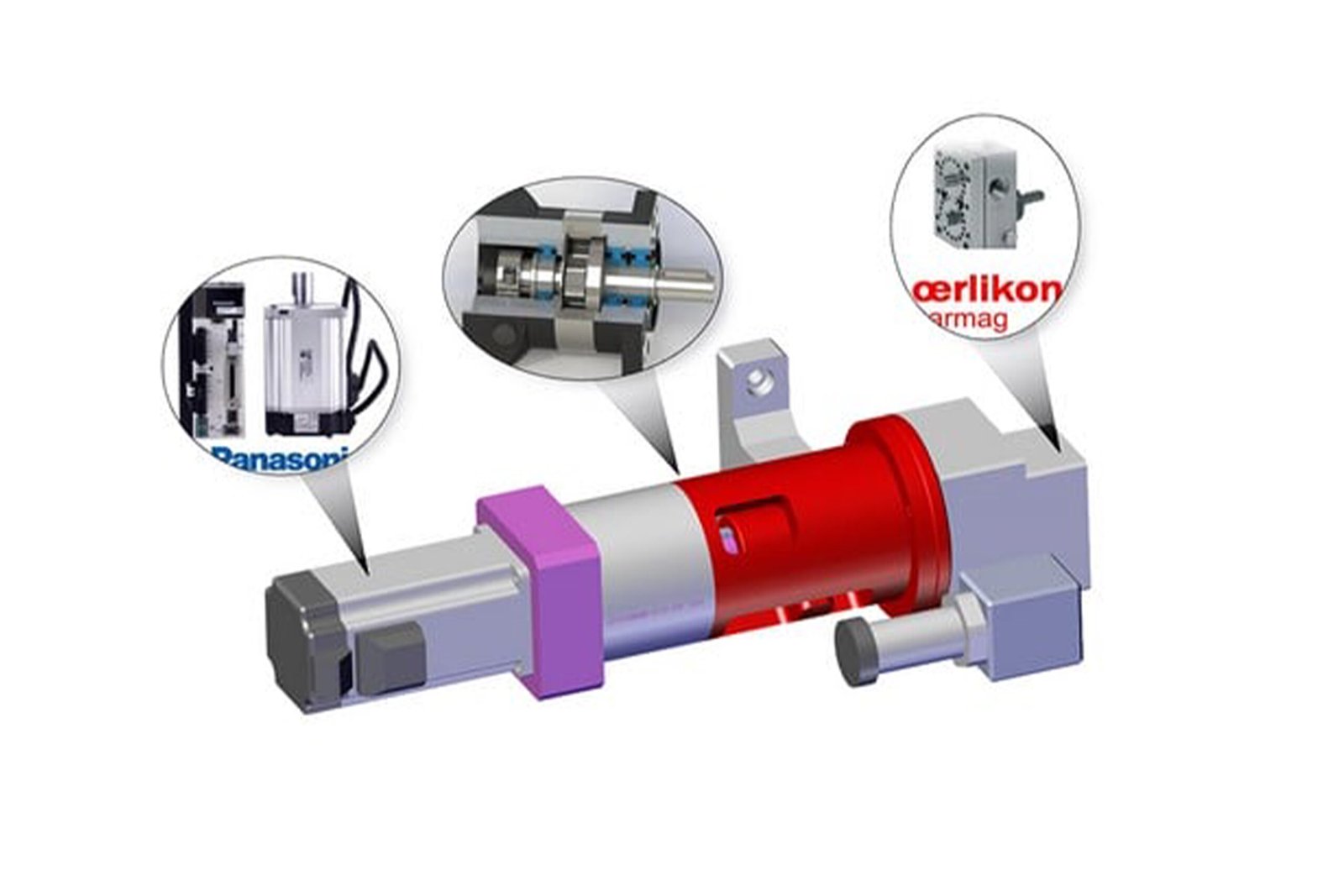

metering pump

metering pump

The high-precision metering pump uses imported sealing and wear-resistant materials, with stable flow and accurate metering. It is suitable for long-term continuous operation and ensures that the sealing strip is foamed evenly and fully.

Yongjia Polyurethane

Application of PU gasket dispensing machine

door seal strip

PU Gasket dispensing machine for
FIPG Cabinet Door

This machine is also used for air filter gasket casting in automotive and industrial filter production, foaming a full seal around the filter element frame with no missing corners — supporting continuous casting across multiple molds for stable, high-efficiency output.

Technical Parameters — PU Gasket Dispensing Machine

ItemSpecification
Travel Range (X/Y/Z)2250×1250×200mm (customizable)
Dimensions2500×2200×2200mm (customizable)
Weight1600kg
Total Power3-4kW
Gasket Width5-30mm (adjustable within the range)
Mixing Ratio1:1-10:1
Application Rate0.3-5 g/s
Travel Speed0-30 m/min
Working Temperature-15°C to +35°C
Metering AccuracyConfirm the unit, calculation method and test conditions for the selected metering system
Pressure Limit & Alarm0-4 Mpa
Filtration Accuracy40-50 µm
Motion / Path RepeatabilityConfirm the measured axis, path and test conditions in the quotation
Air Pressure≧0.6Mpa
Frequency50HZ
VoltageThree-phase five-wire 380V

Specifications are subject to continuous improvement. Tell us your part, output and site conditions and we will confirm the exact configuration.

FAQ

What is a PU gasket dispensing machine used for?

It is used to foam and cast PU sealing gaskets in place, mainly for FIPG (Formed-In-Place Gasket) refrigerator and freezer cabinet door seals, and for air filter gasket casting in automotive and industrial filter production, where it foams a full seal around the filter element frame with no missing corners.

What does FIPG mean?

FIPG stands for Formed-In-Place Gasket — the sealing strip is dispensed and foamed directly onto the part (such as a refrigerator or freezer cabinet door) instead of being cut from a pre-made gasket, giving precise metering and stable casting performance.

What accessories come with the machine?

Core accessories include the raw material tanks, the control system, the mixing head, and the metering pumps that regulate precise dispensing of the PU material.

What is the metering accuracy of the machine?

Metering accuracy and motion or path repeatability must be stated with their units, measured object and test conditions for the selected configuration.
