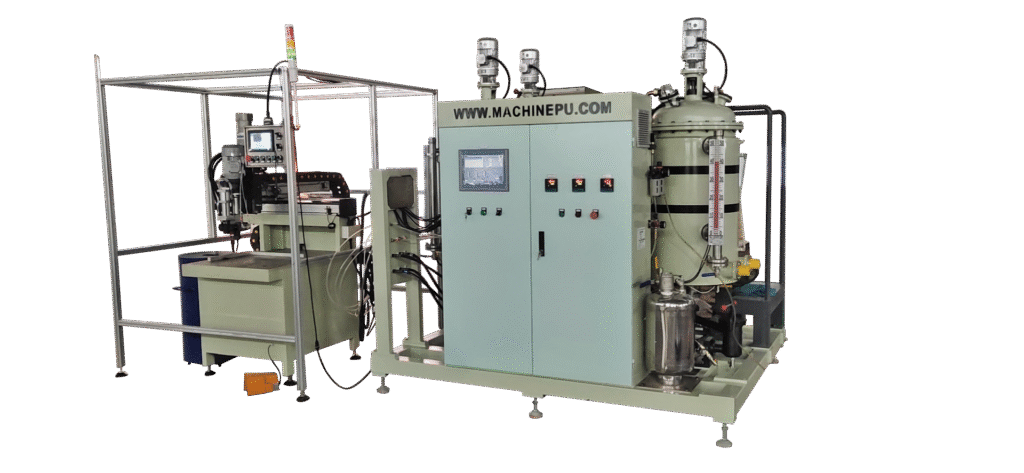

Air Filter Machine
Yongjia Polyurethane
Air Filter Machine
Yongjia’s air filter machine is specifically designed for automotive and industrial air filter production. It features precise metering and uniform mixing, ensuring a fully foamed filter element frame with no missing corners. The machine supports continuous casting using multiple molds, offering stable operation, high efficiency, and easy operation, significantly improving the consistency and production efficiency of air filter products.
Yongjia Polyurethane
Core Accessories of Air Filter Machine

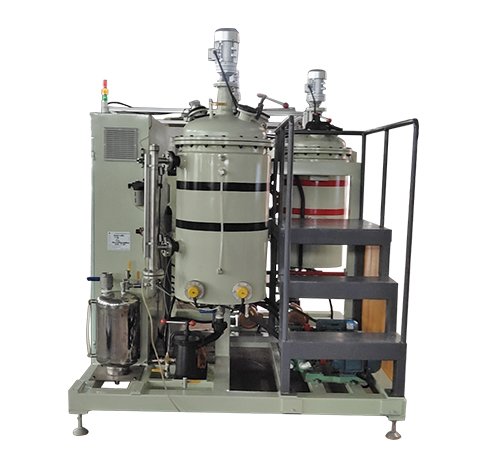

Material Tank

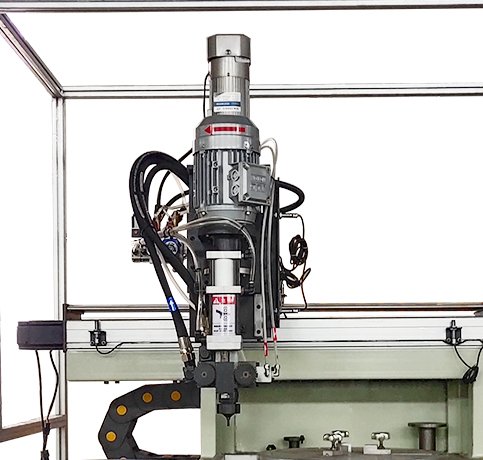

mixing head

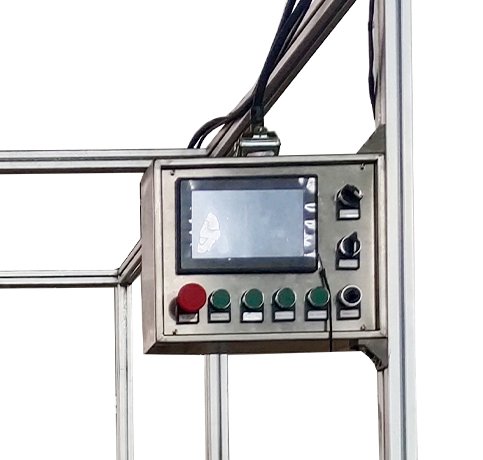

PLC
Technical Parameters — PU Air Filter Gasket Casting Machine
| Items | SPU20-LQ1 | SPU20-LQ2 | SPU20-LQ3 | SPU20-LQ4 |
|---|---|---|---|---|
| Total Output (g/s) | 1.5-4.5 | 2-6 | 6-16 | 10-30 |
| Max Size of Squareness (mm) L*W | 700×700 | 700×700 | 700×700 | 700×700 |
| Max Dia of roundness(mm) | Φ650 | Φ650 | Φ650 | Φ650 |
| Dimension (mm) L*W*H | 1380x2100x2300 | 1380x2100x2300 | 1380x2100x2300 | 1380x2100x2300 |
| Weight(kg) | about 1200kg | about 1200kg | about 1200kg | about 1200kg |
| Total Power(kw) | 9KW | 9KW | 9KW | 9KW |
| Power Voltage/Frequency | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Designed Mixture Ratio | A:B=100:25-35 | A:B=100:25-35 | A:B=100:25-35 | A:B=100:25-35 |
| Moving Speed of Workbench | 2-24m/min | 2-24m/min | 2-24m/min | 2-24m/min |
Specifications are subject to continuous improvement. Tell us your part, output and site conditions and we will confirm the exact configuration.
