Compress and roll-pack finished pillows into neat, space-saving cylindrical bundles — automatically. Built for pillow, cushion and soft-bedding factories that need to cut shipping volume without adding labor.
Applicable Products
- Memory foam pillows, latex pillows, fiber/microfiber pillows
- Shredded foam / fill pillows
- Small cushions and bolsters within the width limit below
- Also usable for quilts and thin blankets per supplier literature — factory confirmation recommended before quoting non-pillow items
Not suitable for: rigid foam blocks, mattresses (a separate mattress compression/rolling line exists), or oversized bedding beyond the max width spec below.
Model Selection
Model B-11-B1 is the core Pillow Rolling / Compression Packing Machine covered on this page. It is often paired with our Pillow Bagging Machine (B-07-A) to form a bag-then-roll or roll-then-bag line — exact sequence to be confirmed with our team for your product. Only one rolling-machine model (B-11-B1) appears in the current source material; if additional model tiers exist, they are not documented here.
Technical Parameters of the B-11-B1 Pillow Rolling / Compression Packing Machine
| Parameter | Value |
|---|---|
| Capacity | 240–360 pcs/h (4–6 pcs/min) |
| Rated Power | 6.05 kW |
| Air Pressure | 0.4–0.7 MPa |
| Power Supply | 3-phase, 220V |
| Max Width | 550 mm |
| Machine Size | 1860 × 1300 × 1040 mm (Machine 890 mm + Cylinder 970 mm) |
| Machine Weight | 880 kg |
Specifications are subject to continuous improvement. Tell us your pillow size and target output and we will confirm the exact configuration.
Capacity Calculator
Using the confirmed output rate of 240–360 pcs/h: approximately 1,920–2,880 pcs per 8-hour shift, 3,840–5,760 pcs per 2-shift (16h) operation, and roughly 50,000–75,000 pcs/month at 26 working days on one shift. This is a machine-side output ceiling — actual line throughput depends on upstream folding/insertion speed and operator staffing.
Production Flow
- Finished pillow (already filled and sewn) is fed into the compression chamber/rollers, either manually or from an upstream bagging machine (B-07-A).
- Machine compresses the pillow and rolls it into a cylindrical form while feeding a wrap film.
- Rolled unit is sealed/wrapped and discharged onto the outfeed conveyor.
- Operator removes the compressed roll for cartoning.
Equipment Composition

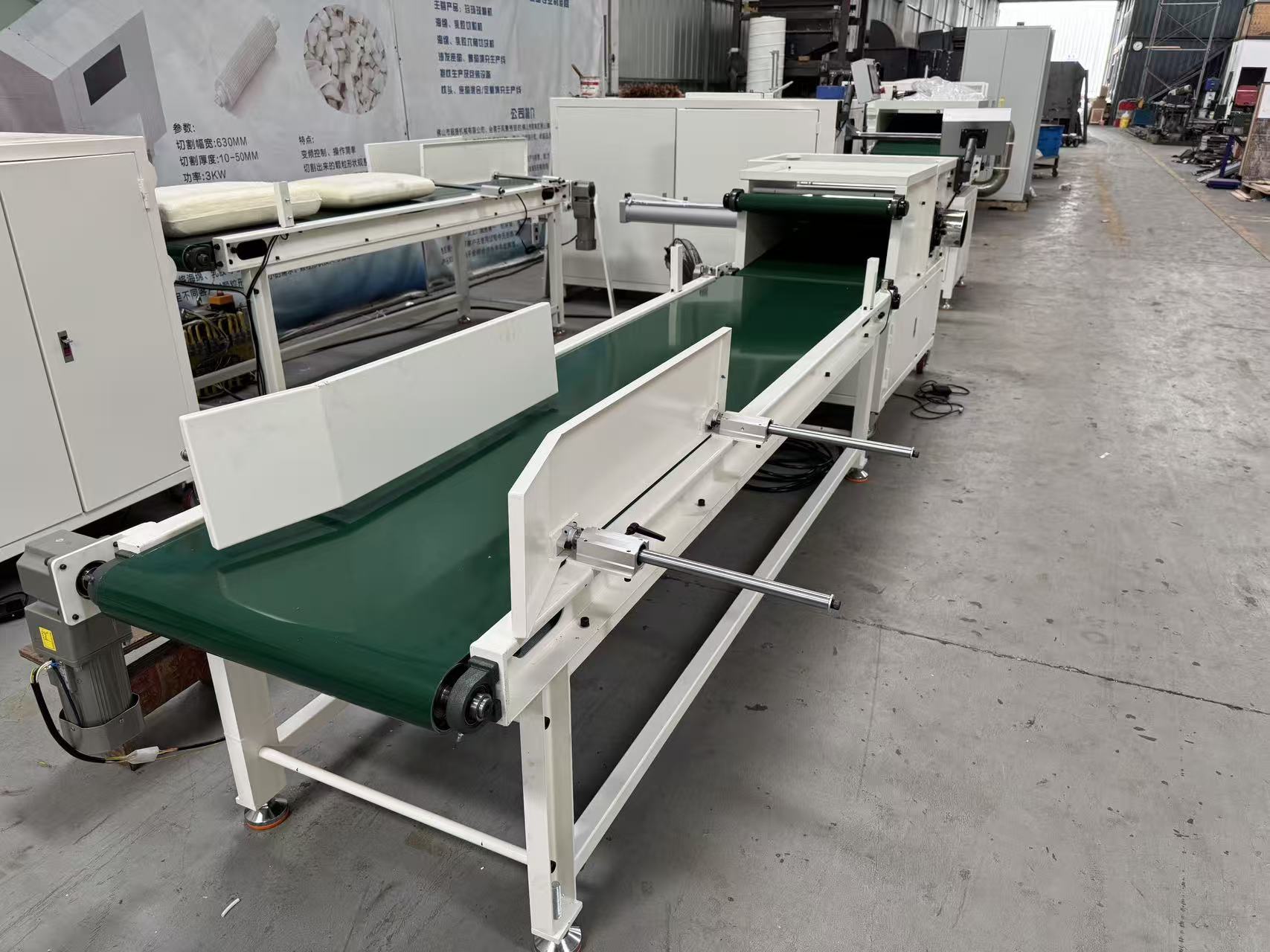

- Pillow Rolling / Compression Packing Machine (B-11-B1) — core unit, includes touchscreen PLC control panel
- Infeed/outfeed conveyor table, integrated with the unit
- Companion equipment commonly sold alongside (separate machines, pricing confirmed separately): Pillow Bagging Machine (B-07-A); Conveyor feed line (2500×600×1200mm); Foam Cutting/Granulating Machine for offcut recycling — capacity 200–400 kg/h; F-01-C (3-blade) 3200×1150×1340mm/1500kg or F-01-A (2-blade) 2100×1150×1250mm/900kg
- Consumables required (customer-supplied, not included): wrap/roll film, compressed air supply
Factory / Utility Requirements
- Electrical supply: three-phase power, 220V (see Specifications above)
- Compressed air: 0.4–0.7 MPa — air consumption/CFM figure for buyer HVAC/compressor sizing available on request
- Floor space: minimum footprint should equal machine dimensions above plus operator/material staging clearance
Project Case Studies
Compression packing reduces shipped volume by 60–75%, allowing 2–3x more units per container. Equipment from this product line has been delivered to markets including Iran, Pakistan, and Egypt.
[Customer case study pending — to be added after client permission and details are confirmed. Example: country, pillow type, before/after container loading numbers.]
Frequently Asked Questions
What pillow types can this machine handle?
How much can this machine reduce my shipping volume?
Do I need a separate bagging machine, or does this do both?
What are the power and installation requirements?
What is the lead time and how do I get a quote?
Tell us your pillow type, size, target daily output, and destination port — we’ll confirm the right machine configuration, price, and lead time for your factory.
