This machine punches ventilation holes into molded PU/memory foam and latex pillows, cushions and mattress toppers after demolding. Perforation lets trapped air escape so foam breathes, resists mold/odor during humid shipping, and recovers its shape faster after vacuum-compression packing.
Applicable Products
Suitable for: memory foam pillows, latex pillows, cervical/orthopedic pillows, foam cushions and mattress pads.
Model Selection
No model code is printed on the trifold brochure’s “Foam Perforating Machine” spec block (see Specifications below). A separately photographed unit carries nameplate model SUF2J20-12 (220V/3kW) — this may be an older or different generation and is not the spec source used on this page.
Technical Parameters of the Pillow Punching Machine
| Parameter | Value |
|---|---|
| Production Speed | 8 strokes/min |
| Punching Diameter | Ø6–Ø20 mm, customizable |
| Power Supply | 380 V |
| Feeding | Manual feeding |
| Hydraulic System | 1 set |
| Machine Weight | 3000 kg |
| Overall Dimensions | 1420 × 760 × 2760 mm |
Additional punch-plate/needle-board reference from a CAD drawing on file: plate outer size 1000 × 600 mm, working area 540 × 360 mm, Ø10mm holes on ~32mm pitch — custom plates are made per customer pillow shape, so exact hole layout is configured per order.
Capacity Calculation
At 8 strokes/min, assuming one pillow piece punched per stroke: ~480 pcs/hour ceiling. Pieces-per-stroke can vary with punch-plate design and pillow size — confirm with our team before quoting a fixed daily output.
Production Process
- Molded foam pillow/cushion is demolded and trimmed.
- Operator manually places the foam piece on the punching table under the needle/pin plate.
- Hydraulic press cycle drives the pin plate down, punching an array of ventilation holes in one stroke (8 strokes/min).
- Table/plate retracts, operator removes the punched piece and loads the next.
- Punched pieces proceed to packing (bagging/rolling) stage.

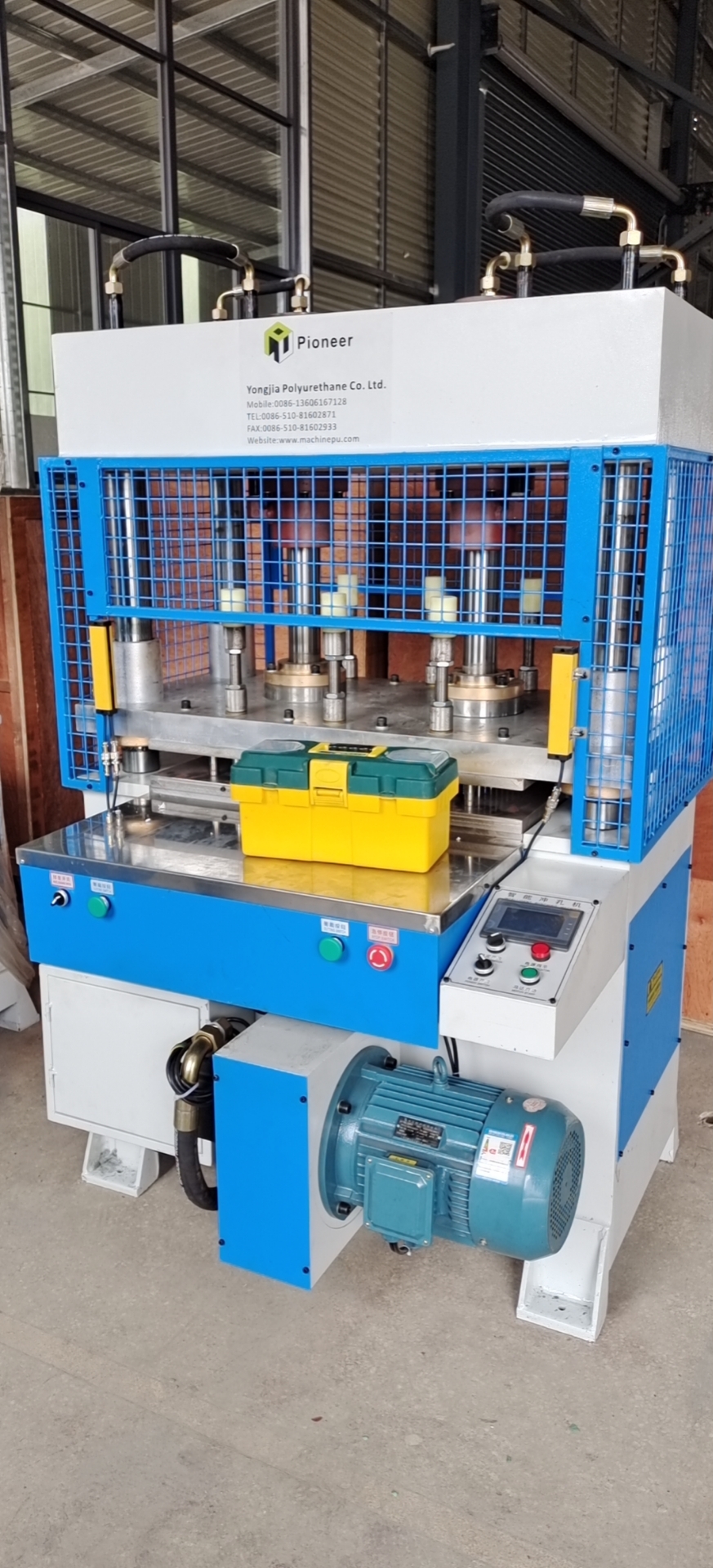

Equipment Composition
- Hydraulic punching head with multiple guided pins/blades mounted on a vertical press frame
- Safety mesh guarding around the punch head with light-curtain style vertical guards
- Fixed worktable for placing foam pieces
- Control panel with push-buttons (start/stop/emergency stop) and a small HMI/display
- Interchangeable punch plate/needle board — custom plates made per customer pillow shape (lead time/cost: contact us)
Workshop / Utility Requirements
- Electrical supply: 380 V (see Specifications above)
- Compressed air: not specified for this machine in the current spec block — needs factory confirmation
- Floor space: minimum footprint 1420 × 760 × 2760 mm plus operator access and staging area for foam pieces before/after punching
Project Case Studies
待补充客户案例 (To be supplied) — no documented named/permission-cleared customer case for the punching machine specifically was found in reviewed folders.
Frequently Asked Questions
What foam types can this machine punch?
Can the hole pattern and hole diameter be customized for my pillow shape?
Is this a manual or automatic machine?
What is the machine’s footprint and power requirement?
Do you provide installation support and training?
Tell us your pillow/cushion shape, foam type and target ventilation pattern, and our engineers will confirm the right punch-plate design and machine configuration for your line.
