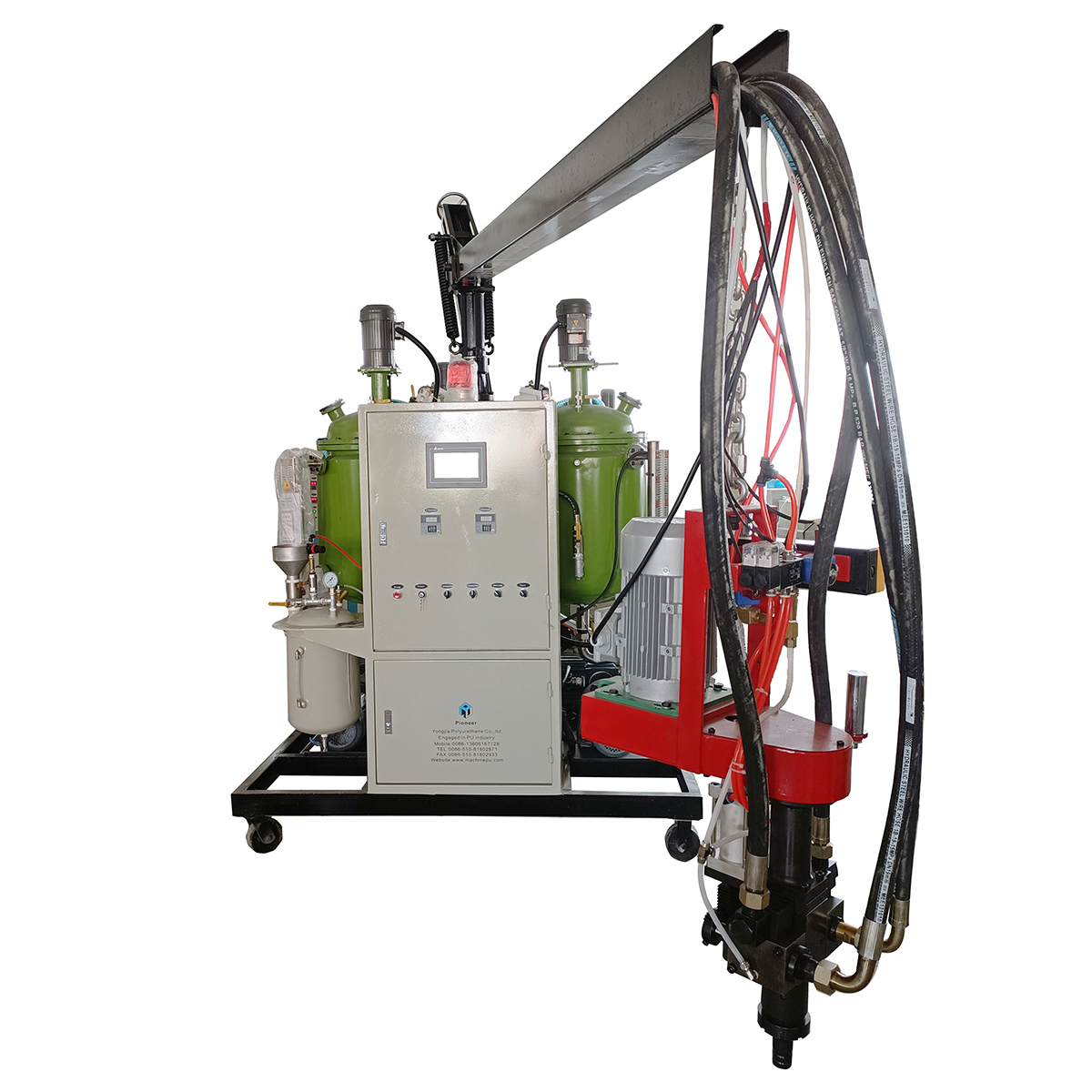

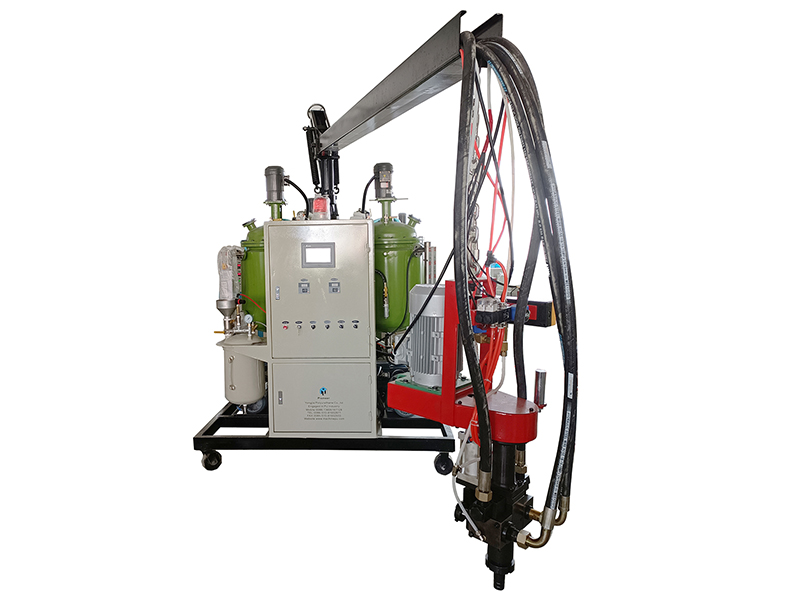

Low Pressure PU Foaming Machine
PU low pressure foaming machine is newly developed by Yongjia company based on learning and absorbing advanced techniques abroad, which is widely employed in the production of automotive parts, automotive interior, toys, memory pillow and other kinds of flexible foams like integral skin, high resilience and slow rebound , etc. This machine has high repeat injection precision, even mixing, stable performance, easy operation, and high production efficiency, etc.
Features
1.For sandwich type material bucket, it has good heat preservation
2.The adoption of PLC touch screen human-computer interface control panel makes the machine easy to use and the operating situation was absolutely clear.
3.Head connected with the operation system, easy for operation
4.The adoption of new type mixing head makes the mixing even, with the characteristic of low noise, sturdy and durable.
5.Boom swing length according to the requirement, multi-angle rotation, easy and fast
6.High precision pump lead to measuring accurately
7.Easy for maintenance, operation and repair.
8.Low energy consumption.
Main components and parameter specification
Material system consists of material tank, filter tank, metering pump, material pipe, infusion head.

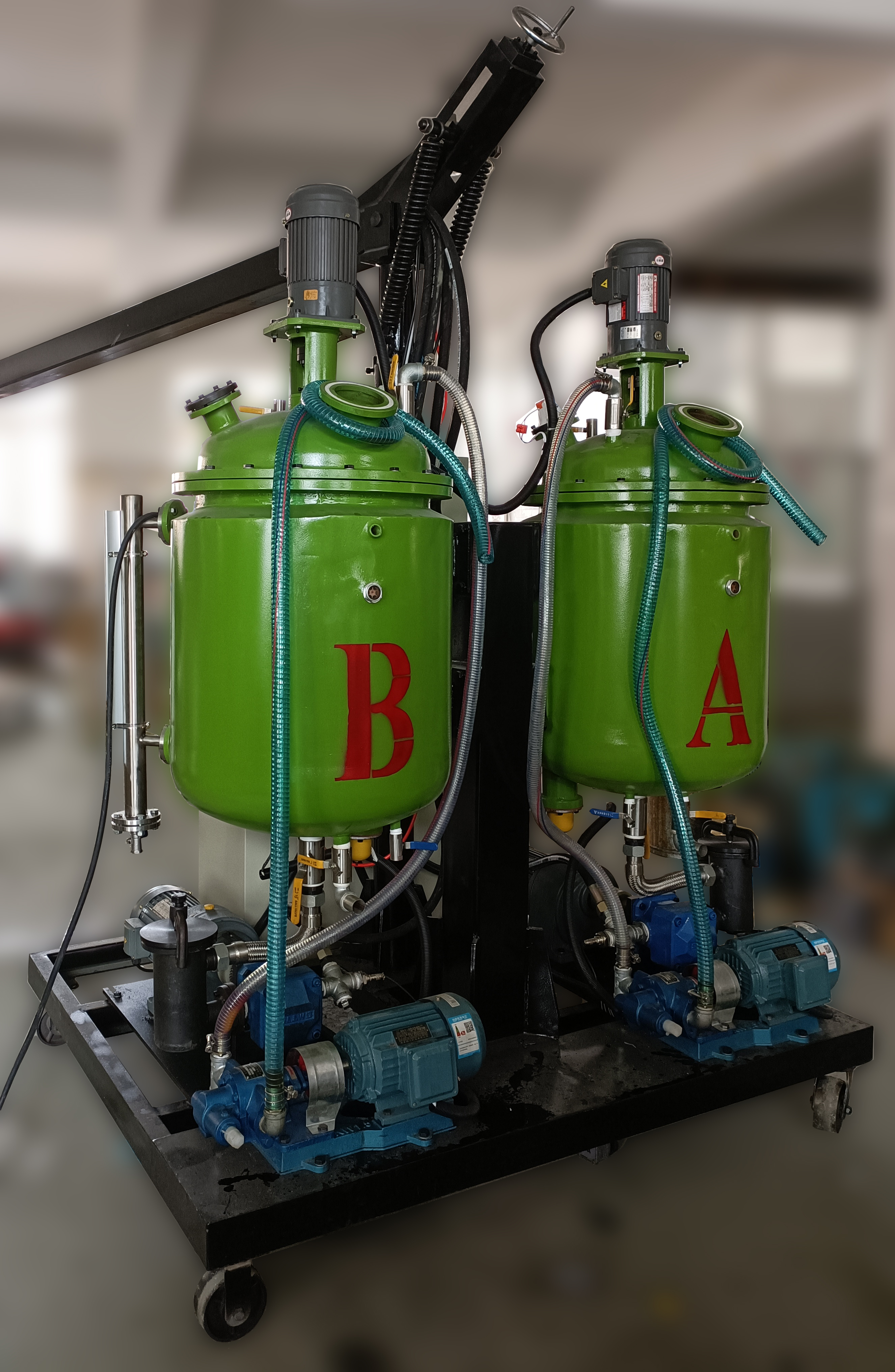

Material Tank:
Double interlining heating material tank with insulation outer layer, heart rapidly, low energy consumption. Liner, upper and low head all use stainless 304 material, upper head is precision machinery sealing equipped to make sure the air tight agitation.

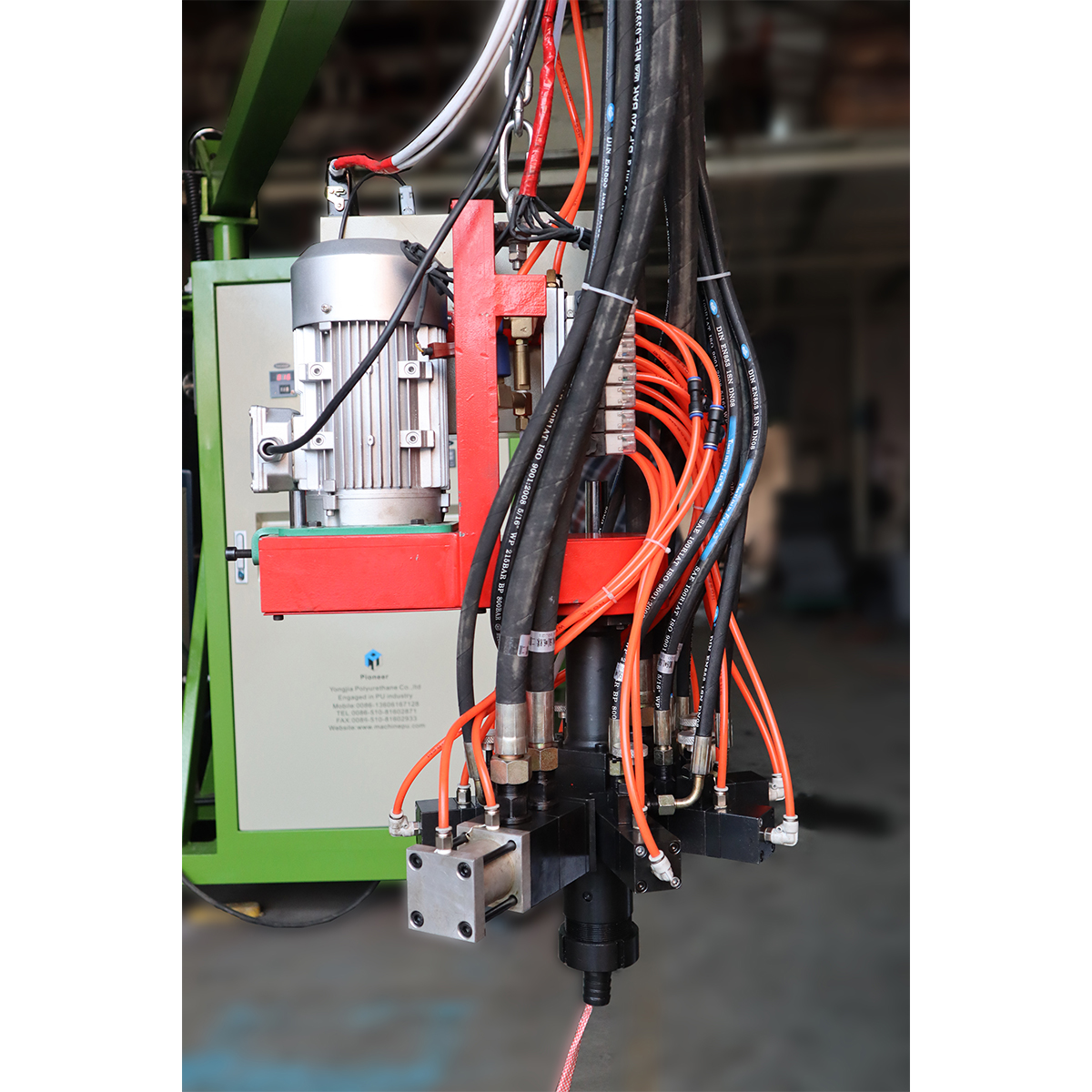

Mixing device(pouring head):
Adopting floating mechanical seal device, high shearing spiral mixing head to make sure the even mixing within required adjusting range of casting mixing ratio. Motor speed is accelerated and frequency controlled through triangle belt so to realize the high speed rotation of mixing head in mixing chamber.
Electrical cotrol system:
Composed of Power switch, air switch,A.C. Contactor and whole machine engine power, heat lamp control element line,digital display temperature controller, digital display manometer, digital display tachometer, PC programmable controller(pouring time and automatic cleaning) to keep machine in good condition.manometer equipped with overpressure alarm to keep metering pump and material pipe from damage due to overpressure.
|
Output of Low Pressure Foam Machine for Rigid Foam (g/s) |
||||
|
SPUR2J1.2 |
SPUR2R2.4 |
SPUR2J3.2 |
SPUR2J3.6 |
SPUR2J6 |
|
1.2-5 |
||||
|
2.5-10 |
||||
|
3.3-13.3 |
||||
|
3.7-15 |
||||
|
6.2-25 |
||||
|
Output of Low Pressure Foam Machine for Rigid Foam (g/s) |
||||||||
|
SPUR2J9 |
SPUR2J12 |
SPUR2J20 |
SPUR2J30 |
SPUR2A16 |
||||
|
9.3-37.4 |
||||||||
|
12.5-50 |
||||||||
|
20.8-83 |
||||||||
|
31.2-124.8 |
||||||||
|
60-240 |
||||||||
|
Output of Low Pressure Foam Machine for Rigid Foam (g/s) |
|||||
|
SPUR2A25 |
SPUR2A40 |
SPUR2A63 |
SPUR2G100 |
SPUR2G50 |
SPUR2Y2000 |
|
80-375 |
|||||
|
130-500 |
|||||
|
225-900 |
|||||
|
250-1000 |
|||||
|
380-2100 |
|||||
|
500-2000 |
|||||
Flexible foam system
Pu stress toy ball
Car Seat Headsets

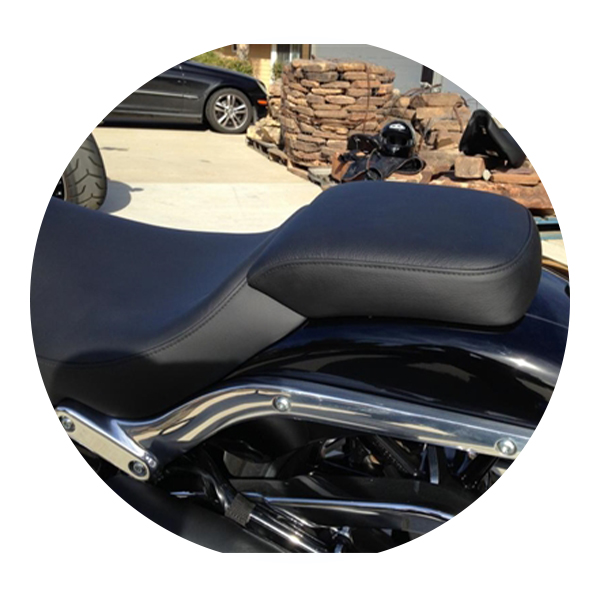

Motorcycle/ bicycle seat cushion
Back support cushion
Soilless cultivation
Integral skin system
Anti-fatigue floor mat
Child toilet seat cushion

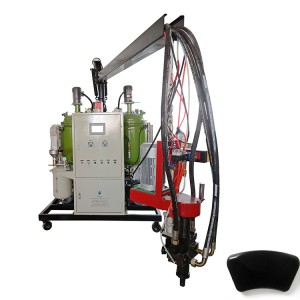

SPA bath head pillow
Rigid foam system

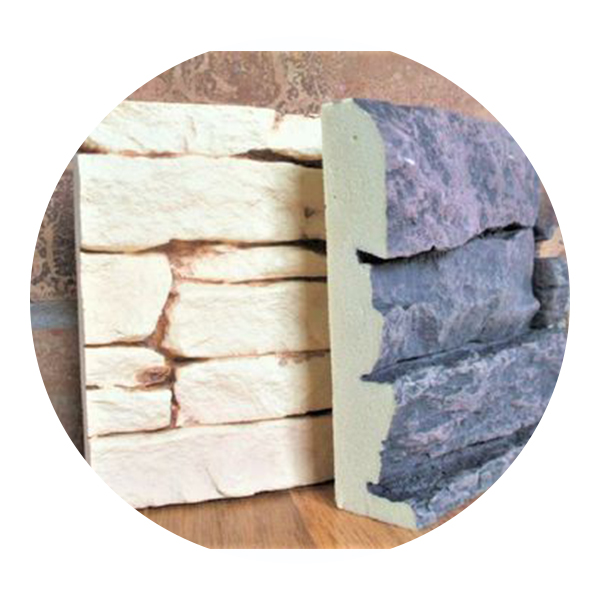

Faux stone decorative panel

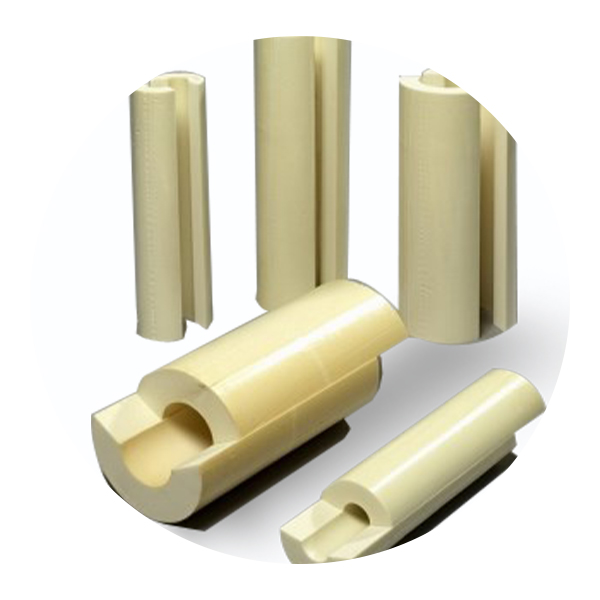

Pipe shell jacket
Floating plaster trowels
Related products
-

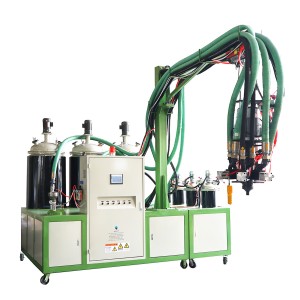

Three Components Polyurethane Foam Dosing Machine
The three-component low-pressure foaming machine is designed for simultaneous production of double-density products with different densities. Color paste can be added at the same time, and products with different colors and different densities can be switched instantly.
-
Polyurethane Low Pressure Foam Injection Machin...
1.High-performance mixing device, the raw materials are spit out accurately and synchronously, and the mixture is uniform; the new sealing structure, reserved cold water circulation interface, ensures long-term continuous production without clogging; 2.High-temperature-resistant low-speed high-precision metering pump, accurate proportioning, and the error of metering accuracy does not exceed ±0.5%; 3.The flow and pressure of raw materials are adjusted by frequency conversion motor with freque...
-

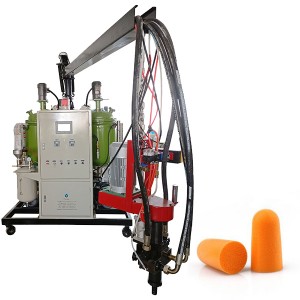

PU Earplug Making Machine Polyurethane Low Pres...
The machine is highly precise chemical pump, accurate and durable.Constant speed motor, frequency converter speed, stable flow, no running ratio.The whole machine is controlled by PLC, and the human-machine touch screen is simple and convenient to operate. Automatic timing and injection, automatic cleaning, automatic temperature control.High precision nose, light and flexible operation, no leakage. Low-speed high-precision metering pump, accurate proportioning, and the measurement accuracy e...
-

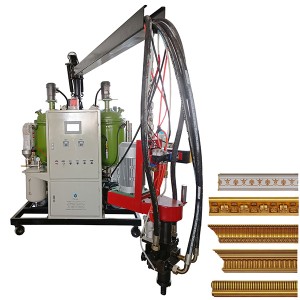

Ployurethane Imitation Wood Frame Making Machine
The mixing head adopts a rotary valve type three-position cylinder, which controls the air flushing and liquid washing as the upper cylinder, controls the backflow as the middle cylinder, and controls the pouring as the lower cylinder. This special structure can ensure that the injection hole and the cleaning hole are not blocked, and is equipped with a discharge regulator for stepwise adjustment and a return valve for stepless adjustment, so that the entire pouring and mixing process is alwa...
-

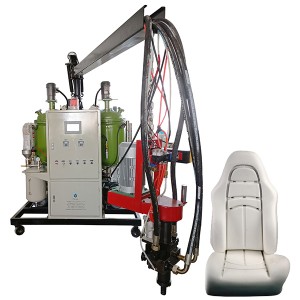

Polyurethane Front Driver Side Bucket Seat Bott...
