Polyurethane Foam Reacting Sprayer Machine
JYYJ-Q200 (D) two-component pneumatic polyurethane spraying machine is used for spraying and pouring, and is used in many fields such as roof insulation of building roofs, cold storage construction, pipeline tank insulation, automobile bus and fishing boat insulation.
1. Secondary pressurized device to ensure fixed material proportion of equipment, improve product yield;
2. With small volume, light weight, low failure rate, easy operation and other great features;
3. Feed rate can be adjusted,have time-set,quantity-set features, suitable for batch casting, improve production efficiency;
4. Adopting the most advanced ventilation method, guarantee equipment working stability to the maximum;
5. Minimizing spraying congestion with multi-feedstock device;
6. Multi-leakage protection system to protect the safety of the operator;
7. Equipped with emergency switch system, help operator deal with emergencies rapidly;
8. Humanized design with equipment operation panel, super easy to get the hang of it;
9. The latest spraying gun has great features like small volume, light weight, low failure rate, etc;
10. Lifting pump adopts big change ratio method, the winter also can easily feed raw materials high viscosity.

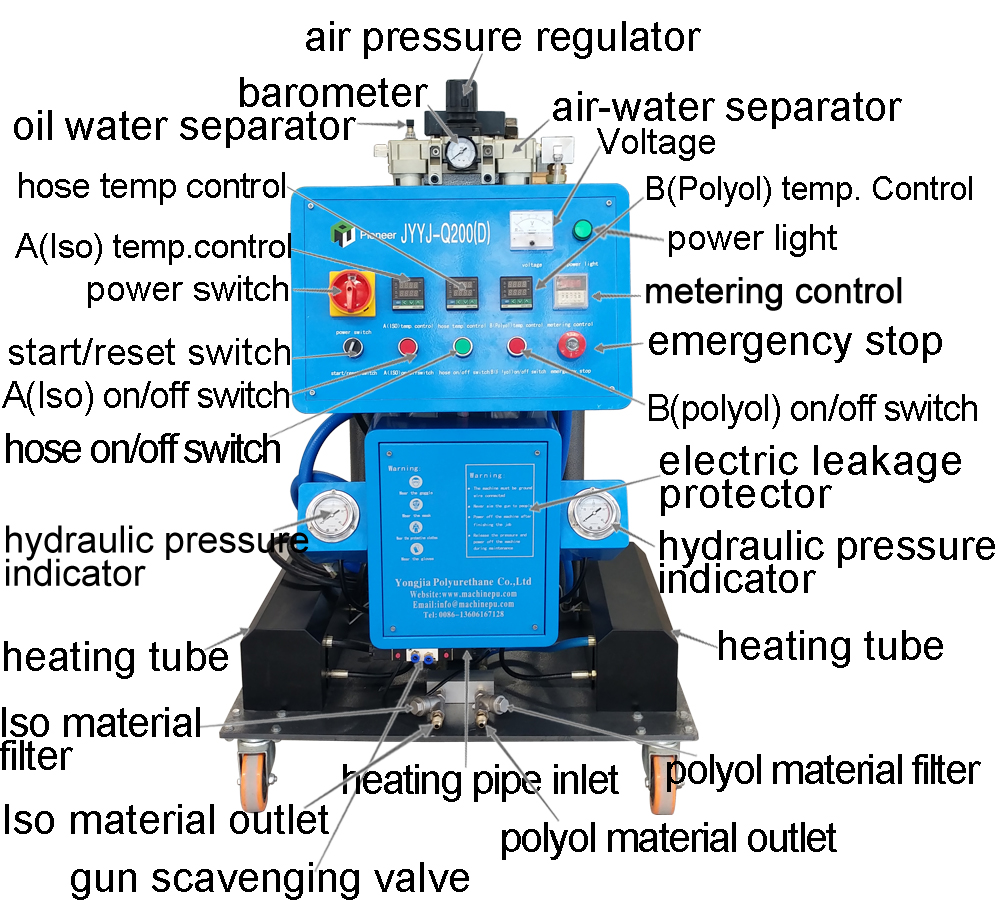

Air pressure regulator: adjusting highs and lows of input air pressure;
Barometer: displaying input air pressure;
Oil-water separator: providing lubricating oil for the cylinder;
Air-water separator: filtering the air and water in the cylinder:

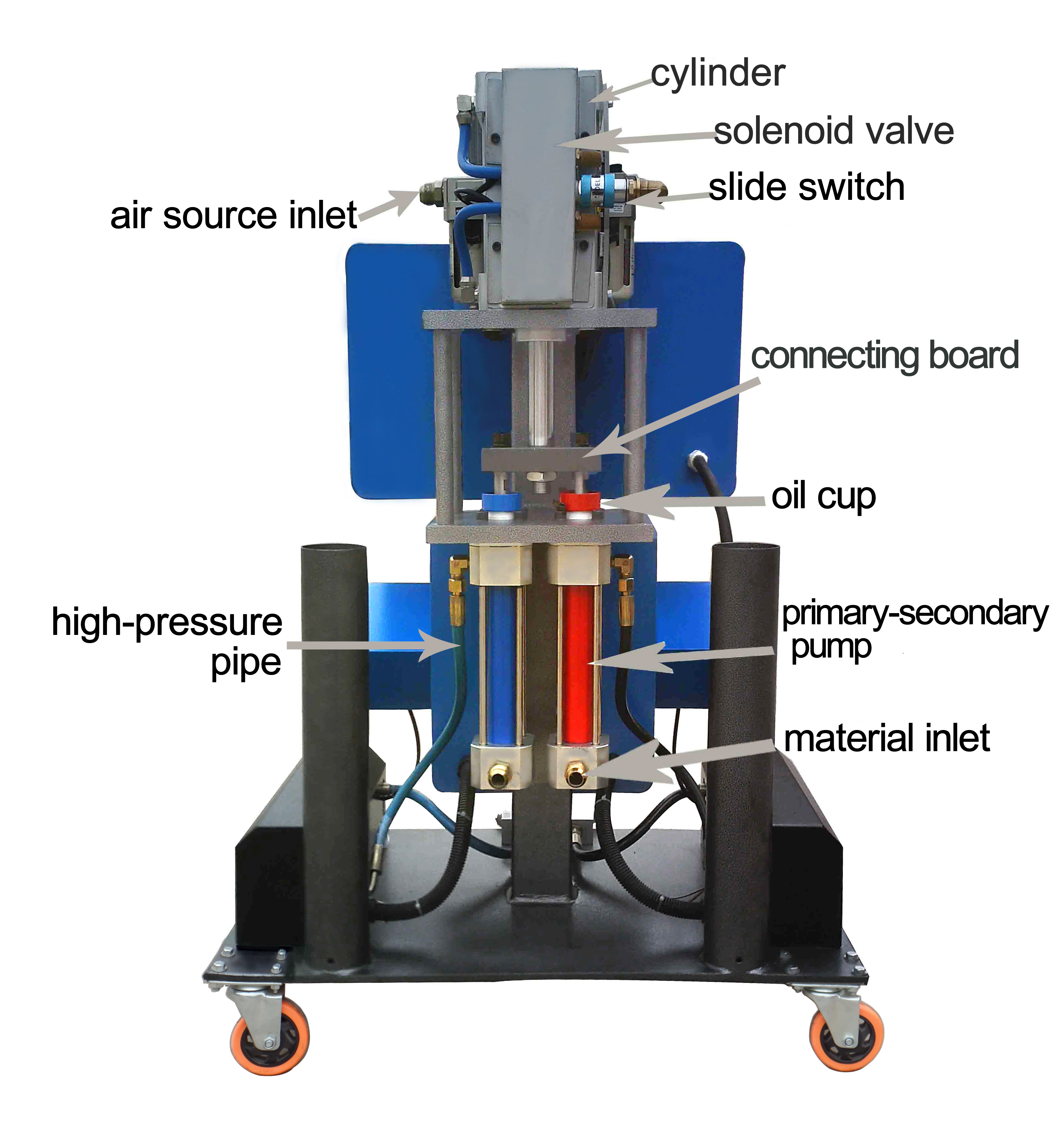

Counter: displaying the running times of primary-secondary pump
Air source input: connecting with air compressor;
Slide switch: Controlling input and on-and-off of the air source;
Cylinder: booster pump power source;
Power Input : AC 380V 50HZ 11KW;
Primary-Secondary pumping system: booster pump for A, B material;
Insulation & Coating: external wall insulation, internal wall insulation, roof, cold storage, ship cabin, cargo containers,trucks, refrigerated trucks,tank, etc.

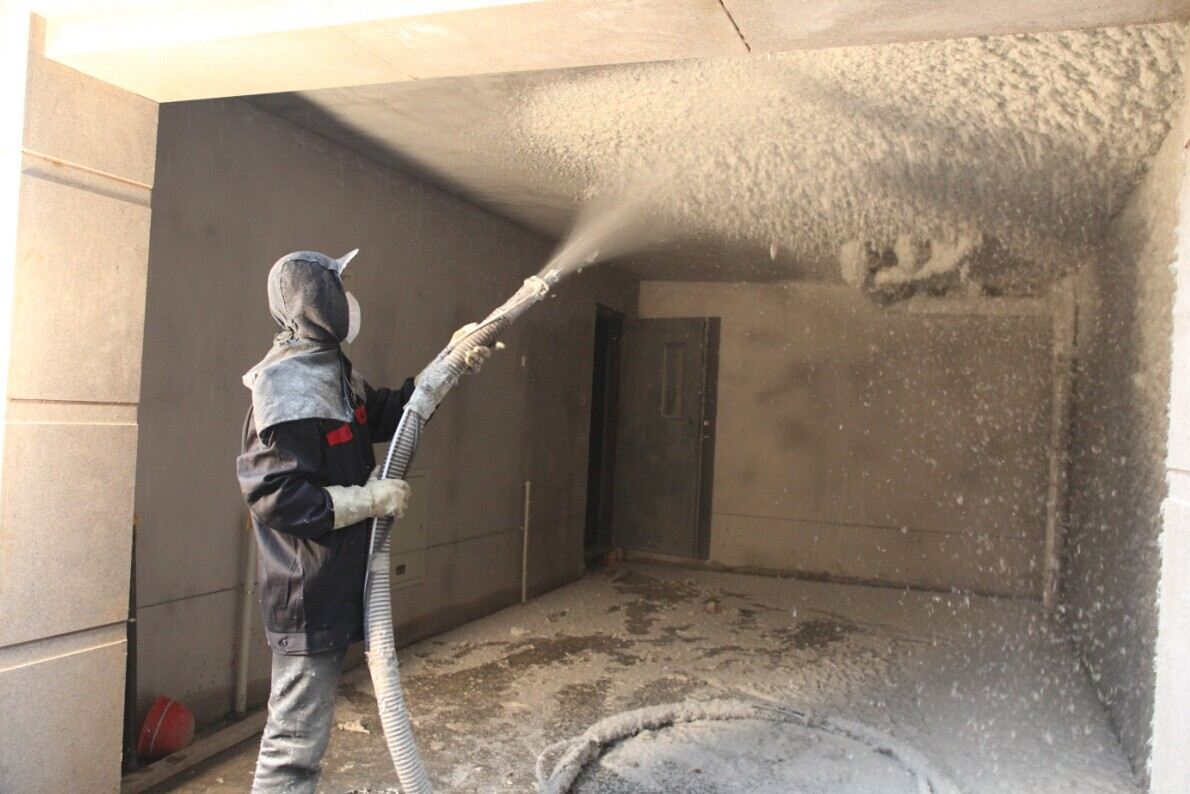

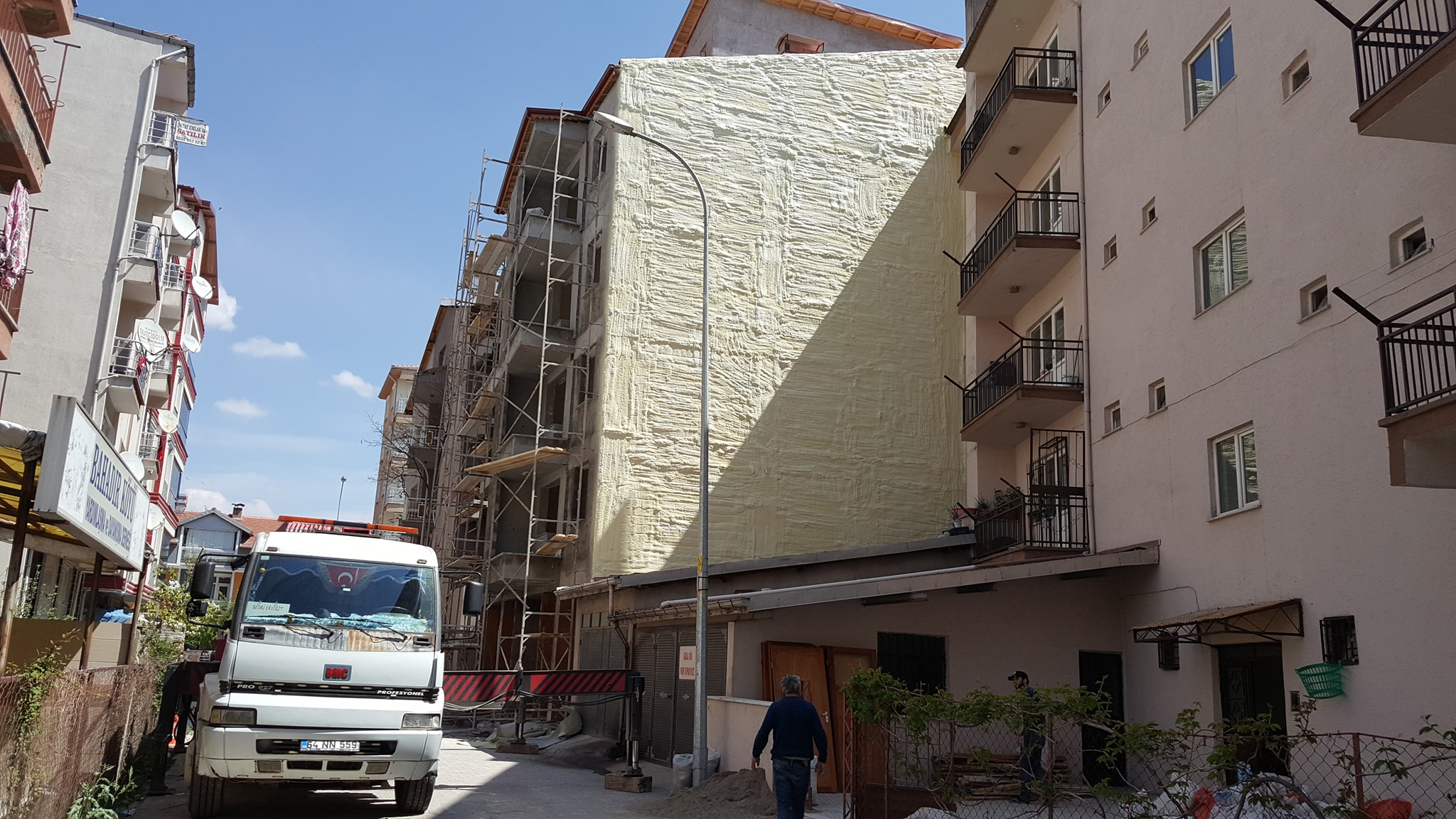

External wall insulation

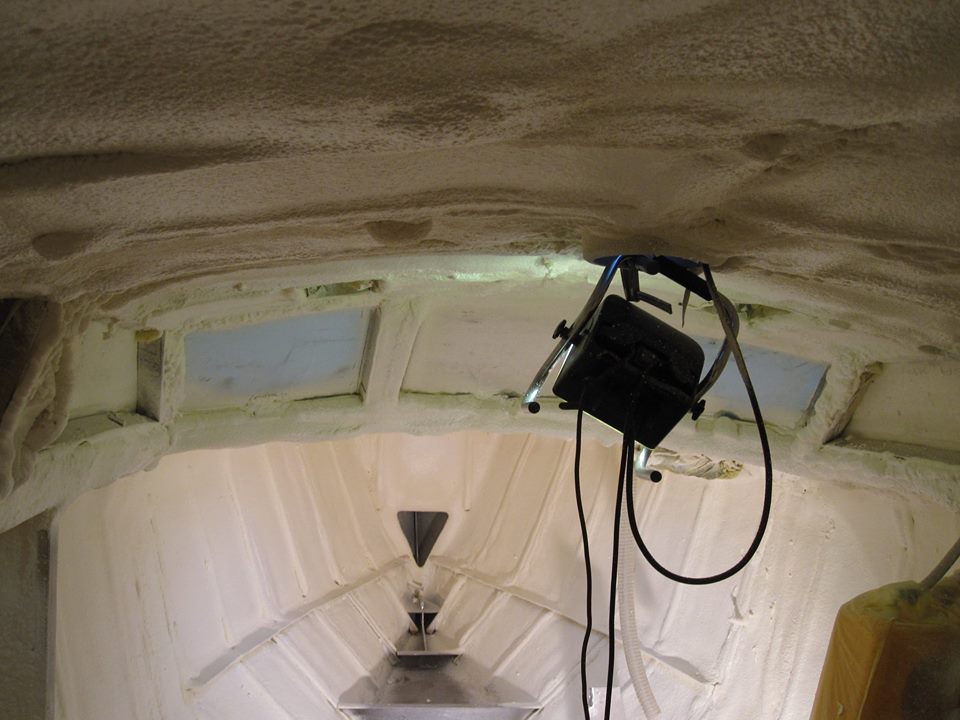

Hull insulation
roof insulation
Pu Polyurethane Rigid Foam Spray Machine Q200(D) Installation for Roof Insulation
