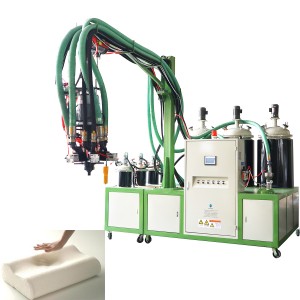

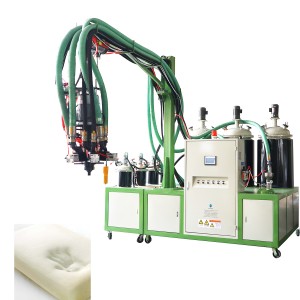

Polyurethane Foam Machine PU Memory Foam Inject Machine For Ergonomic Bed Pillows Making

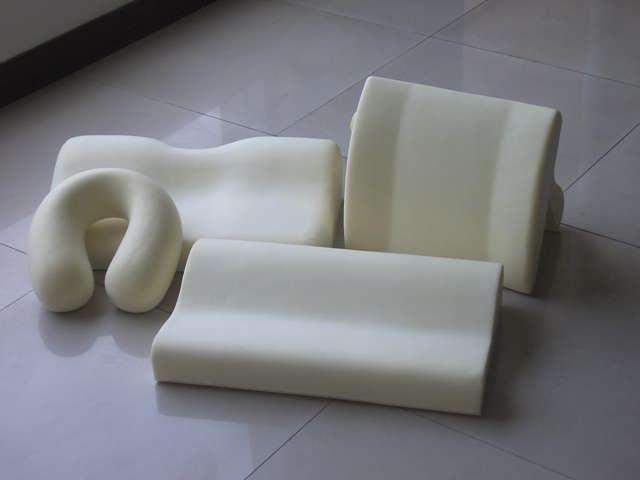

This slow rebound memory foam cervical neck pillow is appropriate for elderly, office workers, students and all ages people for deeper sleep. Good gift to show your care to somebody you concerned. Our machine is designed for producing pu foam products like memory foam pillows.
Technical Features
1.High-performance mixing device, the raw materials are spit out accurately and synchronously, and the mixing is even; new seal
Structure, reserved cold water circulation interface to ensure long-term continuous production without blockage;

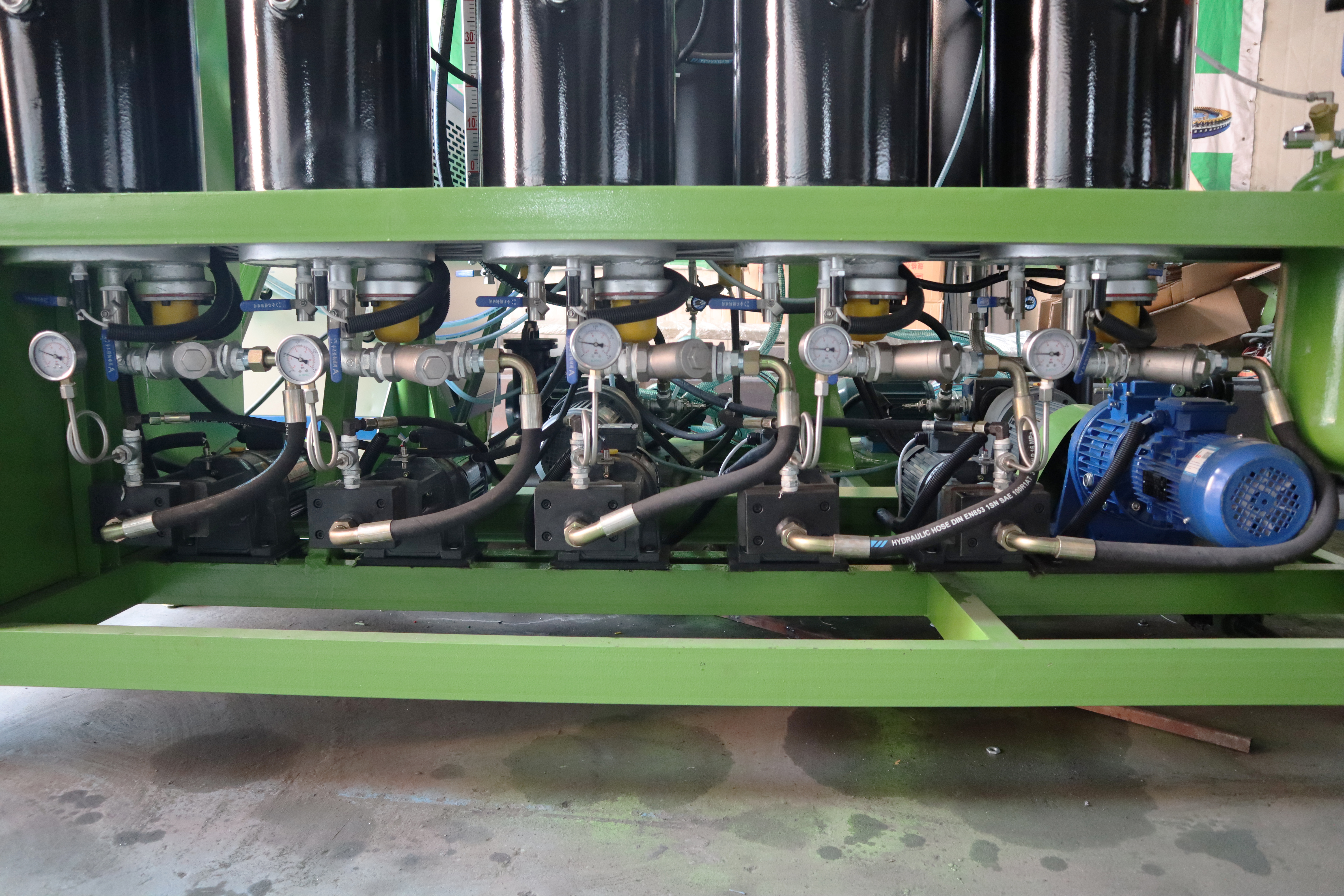

2.High-temperature and low-speed high-precision metering pump, accurate proportioning, and the measurement accuracy error does not exceed
over ±0.5%;
3.The flow and p樂威壯
ressure of raw materials are adjusted by frequency conversion motor with frequency conversion, with high precision and proportional adjustment.
section is simple and fast;
4.It can be loaded with automatic feeding, high-viscosity filling pump, alarm for lack of material, automatic cycle when shutdown
Ring, mixing head water cleaning and other optional accessories;
5.Increase the sample system, switch at any time when trying out small materials, does not affect normal production, saves money
time saving;
6.Adopt advanced PLC control system, automatic cleaning and air flushing, stable performance and operable
Strong performance, when abnormal, it will automatically identify, diagnose and alarm, display abnormal factors, etc.;
Polyurethane foam injection machines are divided into high-pressure polyurethane foam making machines and low-pressure polyurethane foam pouring machines. Different industries can use different types of foam injection machines to make different kinds of polyurethane foam products.
Features of polyurethane low pressure foaming machine:
1. The pouring head designed with patented technology adopts a rotary valve three-position cylinder, which controls the air flushing and liquid washing as the upper cylinder, controls the backflow as the middle cylinder, and controls the pouring as the lower cylinder. This special structure can ensure that the injection hole and the cleaning hole will never be blocked, and is equipped with a discharge regulator (throttle piece) for stepwise adjustment and a return valve for stepless adjustment, so that the entire pouring and mixing process is always synchronized. Consistent, thus ensuring product quality. 2 Using high-precision metering pump and frequency conversion to adjust the speed, the adjustment is accurate, the operation is stable, and the operation is convenient.
| No. | Item | Technical parameter |
| 1 | Foam application | Flexible Foam |
| 2 | Raw material viscosity(22℃) | POLY ～3000MPasISO ～1000MPas |
| 3 | Injection pressure | 10-20Mpa(adjustable) |
| 4 | Output (mixing ratio 1:1) | 26～104g/min |
| 5 | Mixing ratio range | 100:28～48(adjustable) |
| 6 | Injection time | 0.5～99.99S(correct to 0.01S) |
| 7 | Material temperature controlling error | ±2℃ |
| 8 | Repeat injection accuracy | ±1% |
| 9 | Mixing head | Four oil house,double oil cylinder |
| 10 | Hydraulic system | Output: 10L/minSystem pressure 10～20MPa |
| 11 | Tank volume | 120L |
| 15 | Temperature control system | Heat: 2×3.2Kw |
| 16 | Input power | Three-phase five-wire 380V |
High strength and excellent dimensional stability: easy to process, because it does not absorb water, its dry and wet strength does not change. Determined by the properties of the material itself, the size basically does not change with humidity. At constant temperature, within the relative humidity of 0-100%, it can maintain excellent dimensional stability. It still maintains toughness and flexibility at -73 degrees and begins to shrink at 118 degrees; it begins to melt at 135 degrees. Therefore, the heating temperature should not exceed 79 degrees to avoid deformation, and ironing of home textile products is not recommended. Excellent: Fold-resistant, tolerates more than 20,000 repeated folds, and is durable.
How To Make Polyurethane Memory Foam Pillows with Cooling Gel Pad
