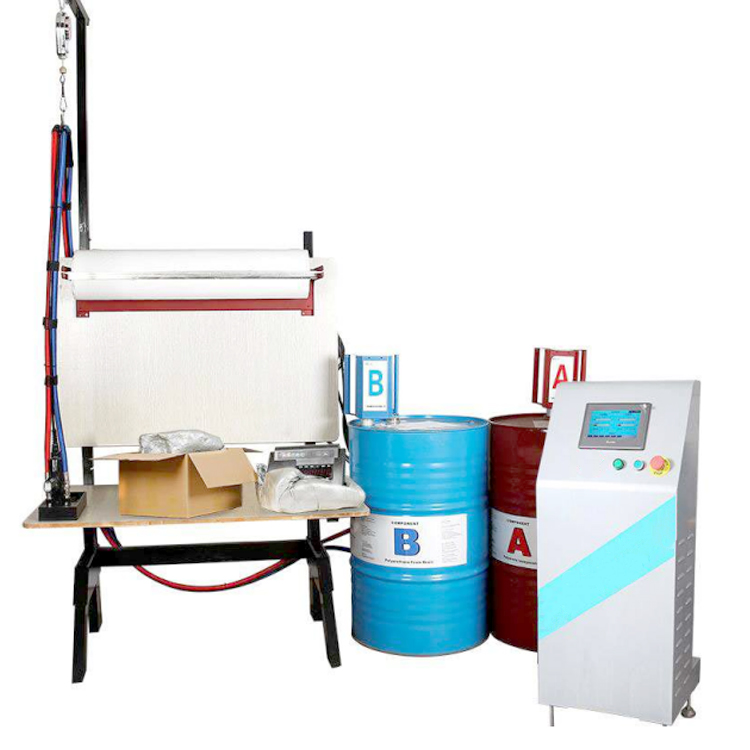

Polyurethane Foam Filling Machine Foam Packing Filling Machine

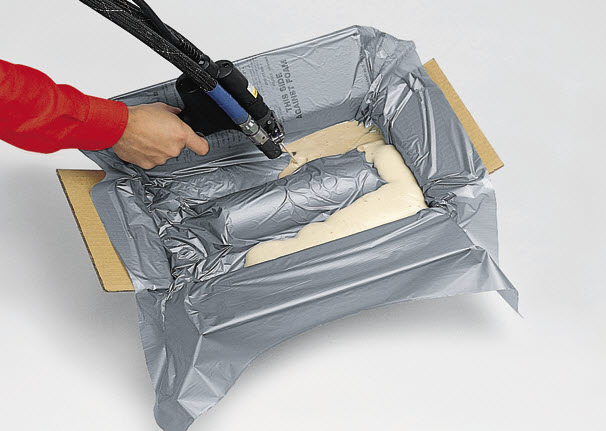

Within a very short time to provide rapid positioning for large of manufactured goods, fine buffer and space filling full
protection,Ensure that the product in the transport.The process of storage and loading and unloading and reliable protection.
Main features of pu foam packing machine
1. EM20 electric on-site foaming machine (no gas source required)
2. Metering gear pump, precision pressure sensor, temperature sensor
3. Electric gun head opening device,
4 The injection volume is adjustable, and the injection time is adjustable.
5 alarm temperature and pressure adjustable
6 Self-cleaning nozzle. No cleaning
Single shot mode:
After setting the timing time, the machine will automatically cut off the injection after the timing time is completed, so that the dosage can be accurately controlled.
Multi-gun mode:
It is the same as the single grab mode, except that 4 timing modes are added, and the sequence is fully timed one by one. A switch signal completes a timing period. When the timing is not completed, it can be disconnected at any time and the signal can interrupt the injection.
Machine structure:
1. PLC control box
2. Imported anti-bending bellows
3. Internal heating control system
4. Electric injection gun head
5. Telescopic spring hanger
6. Servo gear pump control
| Models | YJPU |
| Power supply | 4.5Kw. AC 220V.16A. |
| Air pressure | 0.7-0.8kg/cm2 |
| Air flow | 0.35m3/min |
| Flow | 6-8kg/min |
| Liquid pressure | 1.2-2.3Mpa |
| Thermoregulation | 0-99°C |
| Timing scope | 0.01-99.99s |
| Weight | 80kg |
