Polyurea Waterproof Roof Coating Machine

Short Description:


Introduction

Features

Specification

Application

Video

Product Tags

Our polyurethane spraying machine can be widely used in a variety of construction environments and a variety of two-component materials, polyurethane water base system, polyurethane 141b system, polyurethane 245fa system, closed cell and open cell foaming polyurethane material application industries: building waterproofing, anticorrosion, toy landscape, stadium water park, railway Automotive, marine, mining, petroleum, electrical and food industries.


  • Previous:
  • Next:

  • 1.Equipped with air cooling system to reduced oil temperature, hence offering protection for the motor and pump and save oil.

    2.Hydraulic station works with booster pump, guaranteeing pressure stability for A and B material

    3. The main frame is made from welded seamless steel tube with plastic-spray so it is more corrosion resistant and can bear with higher pressure.

    4. Equipped with emergency switch system, help operator deal with emergencies rapidly;

    5. Reliable & powerful 220V heating system enables rapid warming of raw materials to the best state, making sure it performs well in cold condition;

    6. Humanized design with equipment operation panel, super easy to get the hang of it;

    7.Feeding pump adopts big change ratio method, it can easily feed raw materials high viscosity even in winter.

    8.The latest spraying gun has great features like small volume, light weight, low failure rate, etc;

    Technical Parameters:

    Raw materialpolyurethane and polyurea

    Power source: 3-phase 4-wires 220V 50Hz

    Working power:18KW

    Driven mode: hydraulic

    Air source: 0.5~0.8 MPa ≥0.5m³/min

    Raw output: 3~10kg/min

    Maximum output pressure: 24Mpa

    AB material output ratio: 1:1

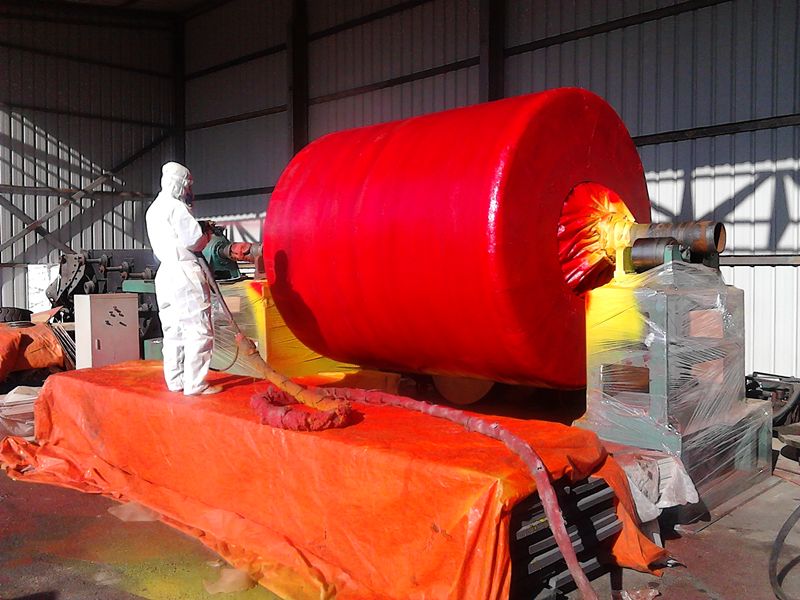

    Polyurea Coating for waterproofing

    5









    99011099_2983025835138220_6455398887417970688_o

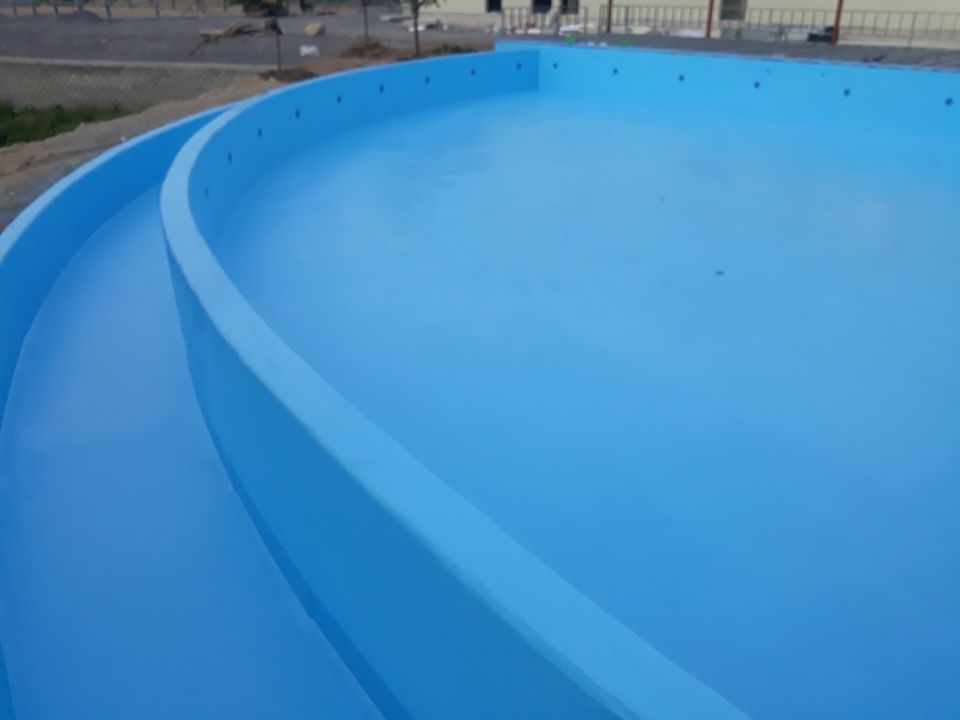

    swimming pool coating

    Polyurethane Foam Spraying and Injection:

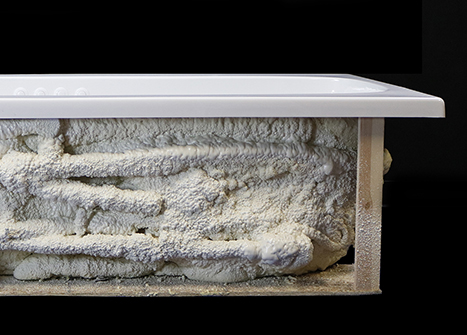

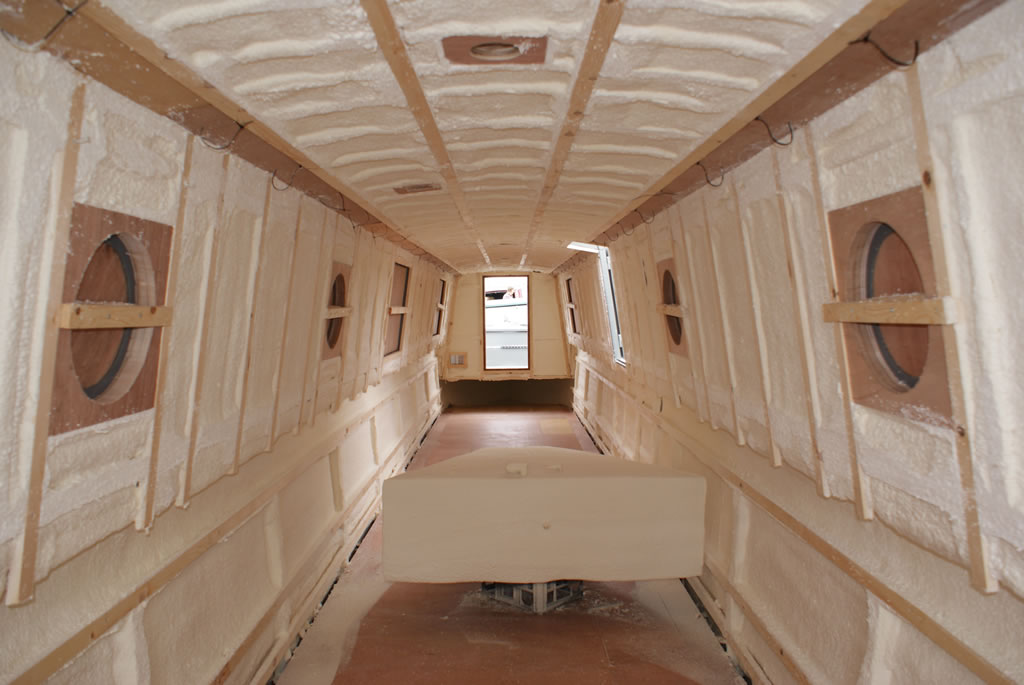

    Foam-resizeDuratherm-Boat

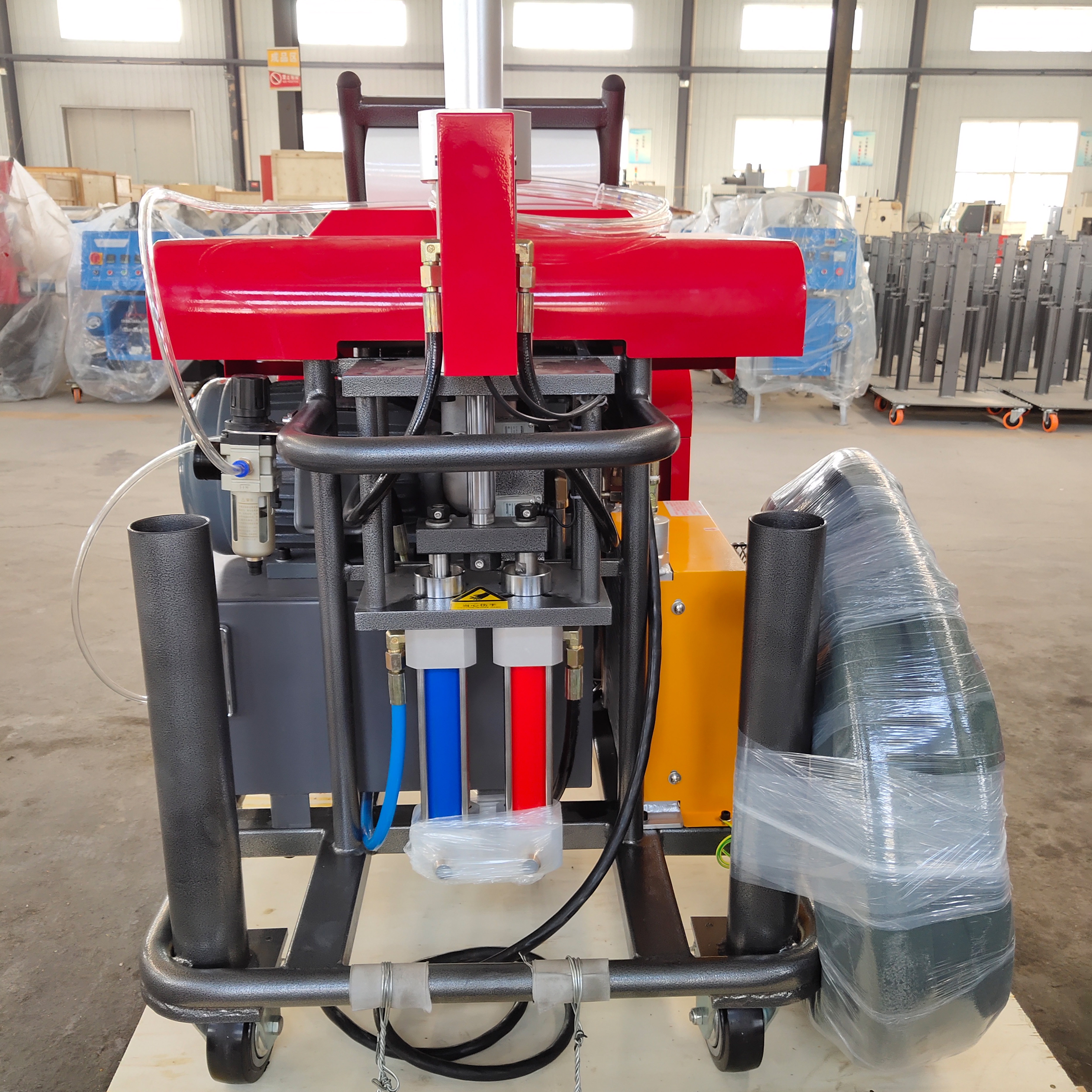

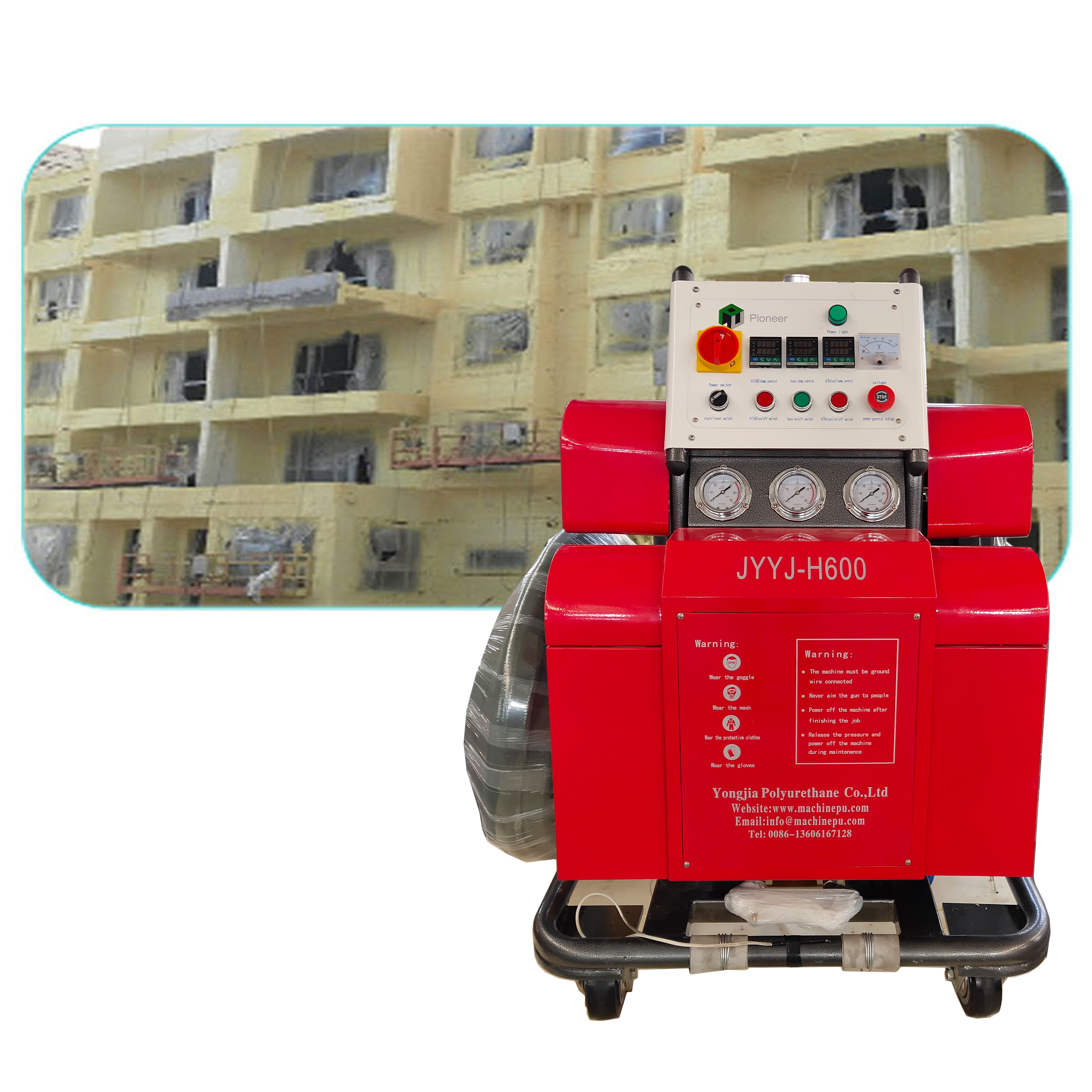

    Do You Know How To Instal A PU Foam Spray Machine?(JYYJ-H600 type)
