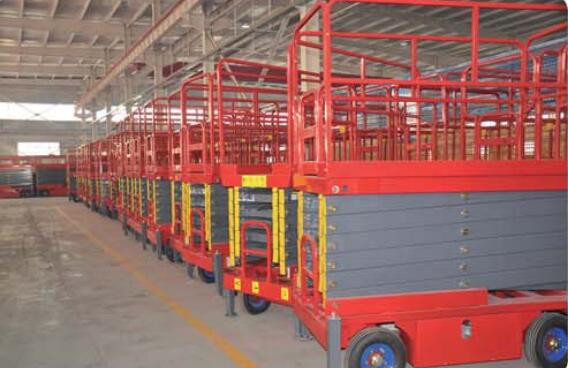

New Traction Aerial Working Platform Lifting Platform Mobile Scissor Lift Platform
This series of proudcts has lifting height ranging from 4m to 18m,and loading weight from 300kg to 500kg,with lifting mode of manual operation,electric,battery and diesel oil,etc.Explosion-proof electric apparatus can be chosen for special places;remove control device platform can be installed according to the users’needs,which has advantages including easy to move,large surface and strong carrying capacity,allowing simultaneous operation of several persons,and safety & reliability,so it is the optimal product for aerial lifting operation.
| Product name |
Model |
Load/KG | Size：length, width and height（mm) |
platform size/ |
Platform height/m |
Weight/kg |
Pumping station/kw Voltage/v | Assisted walking | DC lifting |
| 4 meters Mobile scissor lift platform | FSTSJY0.5-4 |
500 |
2016*1000*1150 |
2010*830 |
4 |
680 |
1.5kw//380v/220v 50hz | Add 2 – 4 batteries |
Add 2 – 4 batteries |
| 4 meters Mobile scissor lift platform | FSTSJY1.0-4 |
1000 |
2016*1290*1150 |
2010*1130 |
4 |
1150 |
1.5kw//380v/220v 50hz | Add 2 – 4 batteries |
Add 2 – 4 batteries |
| 6 meters Mobile scissor lift platform | FSTSJY0.5-6 |
500 |
2016*1000*1250 |
2010*830 |
6 |
750 |
1.5kw//380v/220v 50hz | Add 2 – 4 batteries |
Add 2 – 4 batteries |
| 6 meters Mobile scissor lift platform | FSTSJY1.0-6 |
1000 |
2016*1290*1310 |
2010*1130 |
6 |
1200 |
1.5kw//380v/220v 50hz | Add 2 – 4 batteries |
Add 2 – 4 batteries |
| 7 meters Mobile scissor lift platform | FSTSJY0.5-7 |
500 |
2016*1100*1310 |
2010*930 |
7 |
850 |
1.5kw//380v/220v 50hz | Add 2 – 4 batteries |
Add 2 – 4 batteries |
| 8 meters Mobile scissor lift platform | FSTSJY0.5-8 |
500 |
2016*1100*1350 |
2010*930 |
8 |
950 |
1.5kw//380v/220v 50hz | Add 2 – 4 batteries |
Add 2 – 4 batteries |
| 8 meters Mobile scissor lift platform | FSTSJY1.0-8 |
1000 |
2016*1290*1420 |
2010*1130 |
8 |
1450 |
2.2kw//380v/220v 50hz | Add 2 – 4 batteries |
Add 2 – 4 batteries |
| 9 meters Mobile scissor lift platform | FSTSJY0.5-9 |
500 |
2016*1100*1530 |
2010*930 |
9 |
1050 |
1.5kw//380v/220v 50hz | Add 2 – 4 batteries |
Add 2 – 4 batteries |
| 10 meters Mobile scissor lift platform | FSTSJY0.5-10 |
500 |
2016*1290*1560 |
2010*1130 |
10 |
1280 |
2.2kw//380v/220v 50hz | Add 2 – 4 batteries |
Add 2 – 4 batteries |
| 10 meters Mobile scissor lift platform | FSTSJY1.0-10 |
1000 |
2016*1290*1550 |
2010*1130 |
10 |
1650 |
2.2kw//380v/220v 50hz | Add 2 – 4 batteries |
Add 2 – 4 batteries |
| 12 meters Mobile scissor lift platform | FSTSJY0.5-12 |
500 |
2465*1360*1780 |
2462*1210 |
12 |
1280 |
3kw//380v/（220vFrequency converter) 50hz | Add 2 – 4 batteries |
Add 2 – 4 batteries |
| 12 meters Mobile scissor lift platform | FSTSJY1.0-12 |
1000 |
2465*1360*1780 |
2462*1210 |
12 |
2400 |
3kw//380v/（220vFrequency converter） 50hz | Add 2 – 4 batteries |
Add 2 – 4 batteries |
| 14 meters Mobile scissor lift platform | FSTSJY0.5-14 |
500 |
2845*1620*1895 |
2845*1420 |
14 |
2450 |
3kw//380v/（220vFrequency converter) 50hz | Add 2 – 4 batteries |
Add 2 – 4 batteries |
| 14 meters Mobile scissor lift platform | FSTSJY1.0-14 |
1000 |
2845*1620*1895 |
2845*1420 |
14 |
2800 |
3kw//380v/（220vFrequency converter) 50hz | Add 2 – 4 batteries |
Add 2 – 4 batteries |
| 16 meters Mobile scissor lift platform | FSTSJY0.5-16 |
300 |
2845*1620*2055 |
2845*1420 |
16 |
2780 |
3kw//380v/（220vFrequency converter) 50hz | Add 2 – 4 batteries |
Add 2 – 4 batteries |
| 18 meters Mobile scissor lift platform | FSTSJY0.5-18 |
300 |
3060*1800*2120 |
3060*1620 |
18 |
3900 |
3kw//380v/（220vFrequency converter) 50hz | Add 2 – 4 batteries |
Add 2 – 4 batteries |
