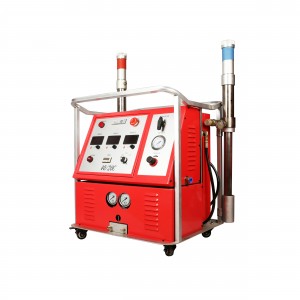

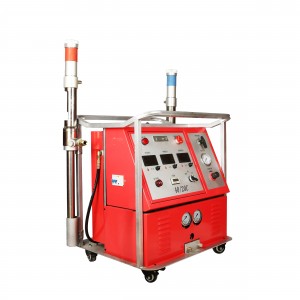

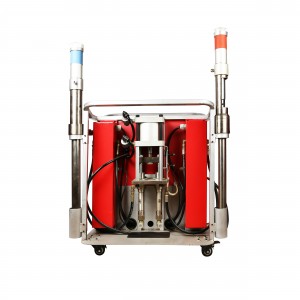

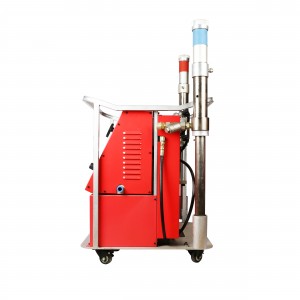

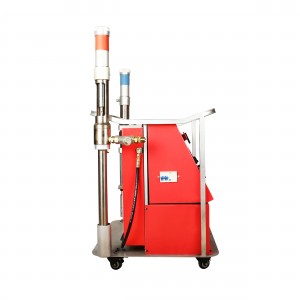

JYYJ-MQN20 Ployurea Micro Pneumatic Spray Machine
1.The supercharger adopts the alloy aluminum cylinder as the power to enhance the working stability and wear resistance of the cylinder
2.It has the characteristics of low failure rate, simple operation, fast spraying and moving, convenient and cost-effective.
3.The equipment adopts the independent feeding method of the first-level TA feeding pump to enhance the sealing and feeding stability of the equipment (high and low optional)
4.The main engine adopts the electric and electric commutation mode, which is more sensitive and stable when changing directions.
5.The 壯陽藥
spray gun has the advantages of small size, light weight, high wear resistance mixing chamber, low failure rate, etc.
6.The design of the whole machine is more humanized and suitable for spraying on various small construction sites
7.The heating system adopts a button-type temperature control system, which automatically adapts to the temperature difference setting, and cooperates with a perfect temperature measurement and over-temperature system to ensure accurate control of material temperature.
8.Proportional pump barrel and lifting piston are made of high wear-resistant and high-strength materials, which can reduce the wear of seals and prolong the service life.
| Model | JYYJ-MQN20 |
| Medium Raw Material | Polyurea (small site, for testing) |
| Maximum Fluid Temperature | 80℃ |
| Maximum Output | 28kg/min |
| Maximum Working Pressure | 20MPa |
| heating power | 7.6kw |
| Hose Maximum Length | 15m |
| Power Parameters | 220V-35A |
| drive Mode | Pneumatic |
| Volume Parameter | 550*600*710 |
| Package Dimensions | 780*680*800 |
| Net Weight | 60kg |
| Package Weight | 100kg |
| Host | 1 |
| Feed Pump | 1 |
| Spray Gun | 1 |
| Heating Insulation Pipe | 15m |
| Side Tube | 1 |
| Feed Tube | 2 |

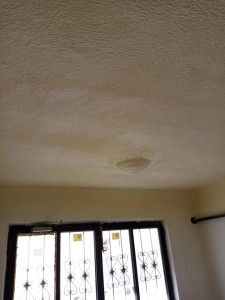

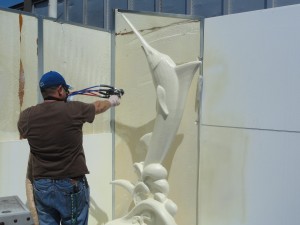

Laboratory testing, small workpieces, local repair, props landscape, civil house repair, bathroom, small polyurethane insulation foam, etc.
