Horizontal Cutting Machine Wave Sponge Cutting Machine For Noise-cancelling Sponge Shaped Sponge
Main features:
- programmable control system, with multi-knife, multi-size cutting.
- electric adjustment roller height, cutting speed can be adjusted.
- cutting size adjustment is convenient for production diversification.
- Trim the edges when cutting, so as not to waste materials, but also to solve the waste caused by uneven raw materials;
- crosscutting using pneumatic cutting, cutting using pneumatic pressure material, and then cutting;
| Model | YJ-1650 | YJ-2150 |
| Profiling width max | W1650 mm | W2150 mm |
| Profiling depth max | 30 mm | 30 mm |
| Profiling axletree turning speed | 0~25 r/min | 0~25 r/min |
| Motor power | 8.92Kw | 8.92Kw |
| Cutting speed | 0~25 mm | 0~25 mm |
| Blade length | L9260 mm | L10400 mm |
| Machine weight | 2000 Kg | 2500 Kg |
| Machine external size | L4200XW1250XH1550mm | L4700XW1250XH1550mm |

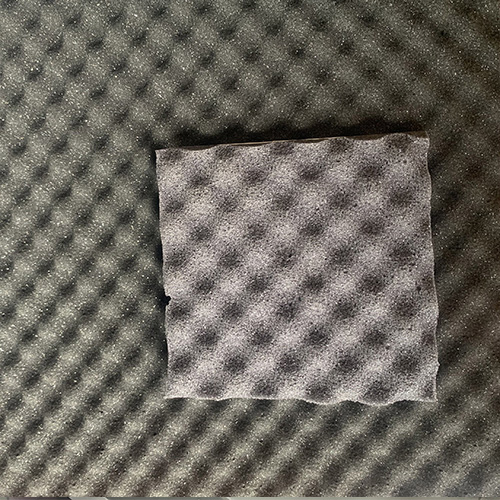

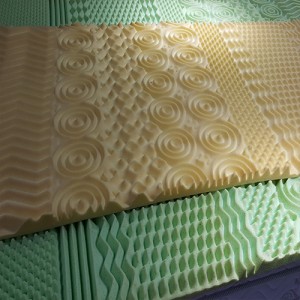

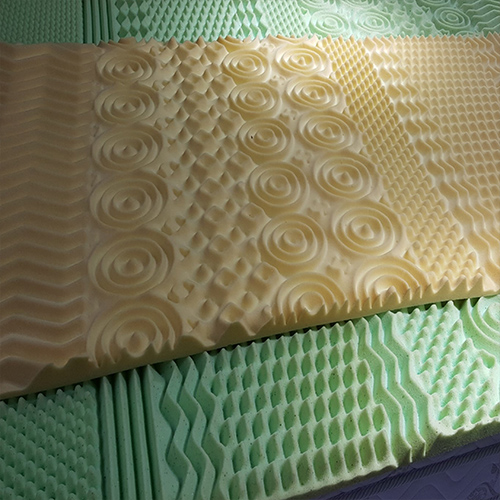

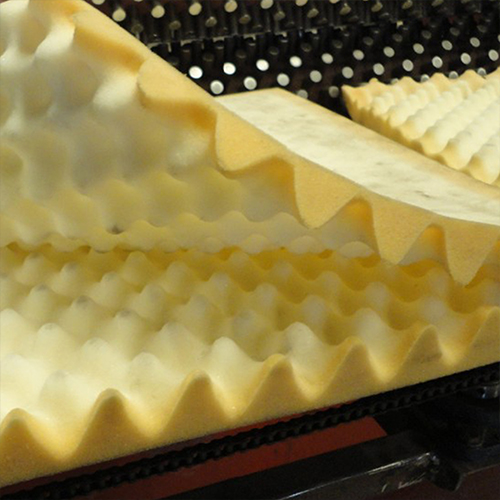

Profile Cutting Machine is mainly cut the foam into concave and convex shape, suitable for cushion, packaging, cushion, each machine is equipped with a set of standard compression roller. This machine is also called sponge wave cutting machine, it is a thick sponge through tooth press to cut two pieces of concave and convex corresponding products, mainly used for making health mattress, pillow and packaging. At the same time, it can also be used for peak-valley pressure type of muffler sponge, wavy sponge to reduce noise absorption noise.
