High Pressure Foaming Machine For Car Seat Production Car Sear Making Machicne
Features
Easy maintenance and humanization, high efficiency in any production situation; simple and efficient, self-cleaning, cost saving; components are directly calibrated during measurement; high mixing accuracy, repeatability and good uniformity; strict and accurate component control.

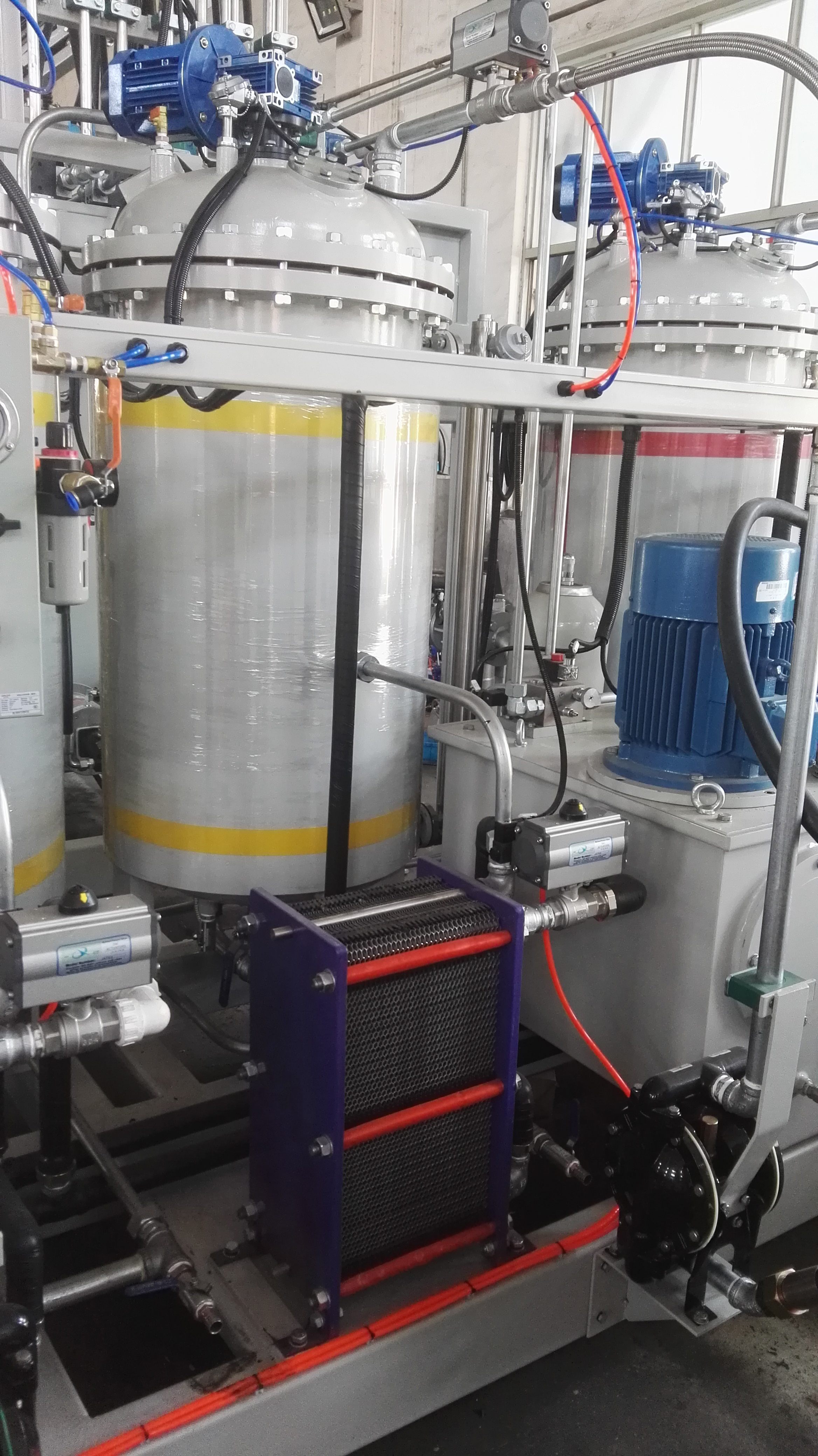

1.Adopting three layer storage tank, stainless steel liner, sandwich type heating, outer wrapped with insulation layer, temperature adjustable, safe and energy saving;
2.Adding material sample test system, which can be switched freely without affecting normal production, saves time and material;
3.Low speed high precision metering pump, accurate ratio, random error within ±0.5%;
4.Material flow rate and presure adjusted by converter motor with variable frequency regulation, high accuracy, simple and rapid ration adjusting;
1. Component storage and temperature regulation:
1) Pressurized sealed double-layer tank with visual level gauge
2) Digital pressure gauge is used for pressure control,
3) Resistance heater and cooling water solenoid valve for component temperature adjustment (optional for chiller)
2.Measuring unit:
1) The motor and the pump are linked by a magnetic coupling
2) The metering pump has a digital pressure gauge to control the discharge pressure
3) Equipped with double protection of mechanical and safety relief valve
3. Electrical control system:
1) The whole machine is controlled by PLC
2) Color touch screen control panel, friendly and simple interface, can realize functions such as parameter setting, status display and pouring time
3) Alarm function, sound and light alarm with text display, failure shutdown protection
|
Item |
Technical Parameter |
|
Foam application |
PU Soft foam |
|
Raw material viscosity(22℃) |
POL～2500mPas ISO ～1000mPas |
|
Injection pressure |
10～20Mpa (adjustable) |
|
Injection Output (mixing ratio 1:1) |
160-800g/s |
|
Mixing ratio range |
1:3～3:1(adjustable) |
|
Injection time |
0.5～99.99S(correct to 0.01S) |
|
Material temperature control error |
±2℃ |
|
Repeated injection accuracy |
±1% |
|
Mixing head |
Korea SPU 1218-2K, four oil hoses, double oil cylinders |
|
Hydraulic system |
Output 10L/min System pressure 10～20MPa |
|
Tank volume |
250L |
|
Input power |
Three-phase five-wire,380V 50HZ |

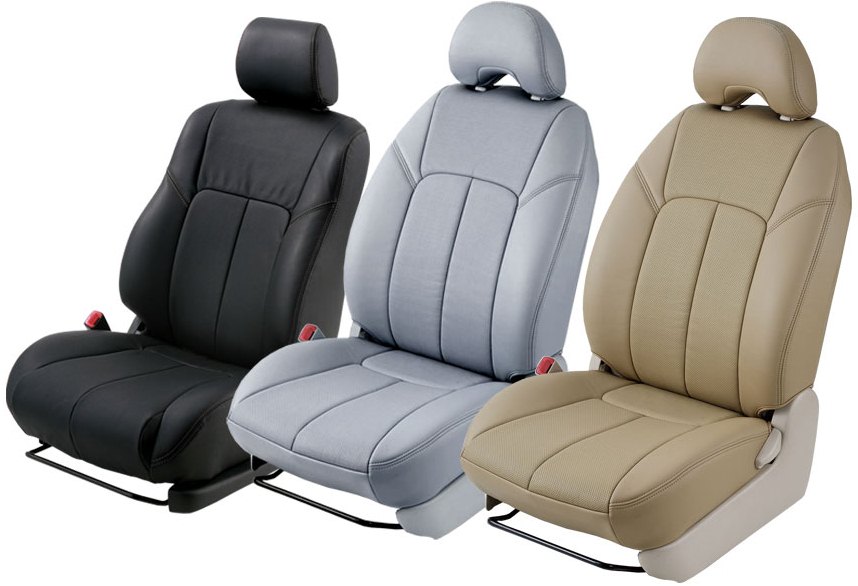

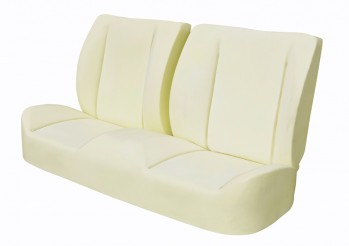

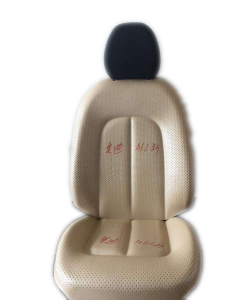

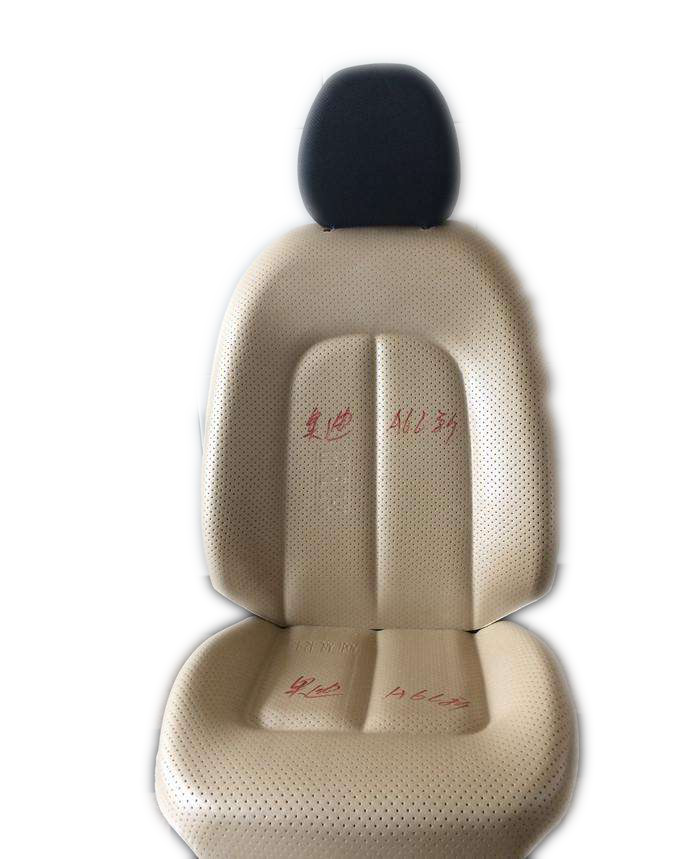

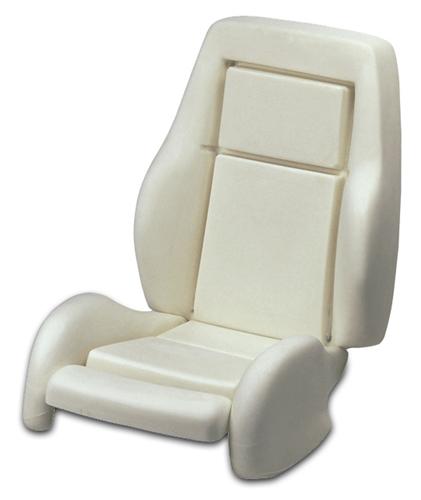

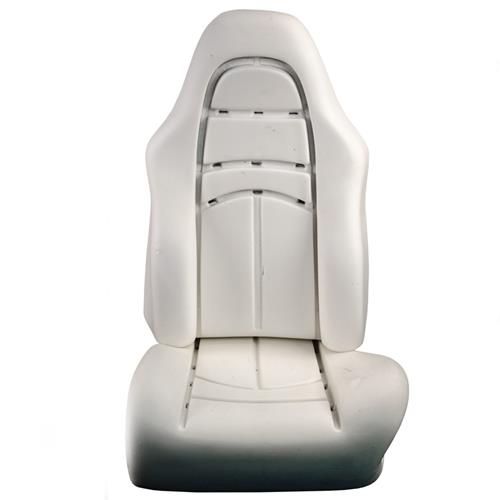

Car seat cushion, furniture cushion, pillow, deflector, dashboard, sun visor, motorcycle seat cushion, bicycle seat cushion, thermal insulation material, refrigerator, refrigerated car, roof insulation board, seat cushion, office chair, armrest, furniture , decorative materials, etc.
