Culture Stone Making Machine High Pressure Foaming Machine For Faux Stone Panels
Polyurethane foaming machine is a special equipment for infusion and foaming of polyurethane foam. As long as the polyurethane component raw materials (isocyanate component and polyether polyol component) performance indicators meet the formula requirements. Through the foaming equipment, uniform and qualified foam products can be produced.
Polyurethane foaming machine has high elasticity and strength, excellent oil resistance, fatigue resistance, abrasion resistance, impact resistance. Due to its low thermal conductivity, it provides good thermal and thermal insulation, reducing the risk of accidents. Polyurethane foaming machine is mainly used to produce polyurethane flexible foam and self-skinning products. Such as sound insulation cotton, memory pillows, bras, car seat cushions, steering wheels, etc.
★Using high-precision oblique-axis axial piston variable pump, accurate measurement and stable operation;
★Using high-precision self-cleaning high-pressure mixing head, pressure jet, impact mixing, high mixing uniformity, no residual material after use, no cleaning, maintenance-free, high-strength material manufacturing;
★Black and white material pressure needle valve is locked after balance, to ensure that there is no pressure difference between black and white material pressure
★The magnetic coupling coupling adopts high-tech permanent magnet control, no temperature rise and no leakage;
★The mixing head adopts double proximity switch control to realize precise injection;
★The function of timing cycle of raw materials ensures that the raw materials do not crystallize when the equipment is stopped;
★Fully digital, modular integrated control of all technological processes, accurate, safe, intuitive, intelligent and user-friendly.

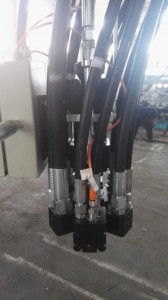

Imported high pressure mixing head
The self-cleaning high-pressure mixing head has accurate pouring rhythm and good mixing and foaming effect.
motor
It has the advantages of high efficiency/low noise and high insulation level/low vibration, and saves energy up to 10%.

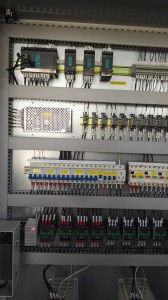

PLC control system
Excellent quality, easy maintenance, powerful functions, convenient and flexible
Stable and low failure rate.
| Item | Technical parameter |
| Foam application | rigid foam |
| raw material viscosity(22℃) | POLY ～2500MPas ISO ～1000MPas |
| injection pressure | 10-20Mpa(adjustable) |
| Output (mixing ratio 1:1) | 110～540g/s |
| Mixing ratio range | 1:5～5:1(adjustable) |
| injection time | 0.5～99.99S(correct to 0.01S) |
| Material temperature controlling error | ±2℃ |
| Repeat injection accuracy | ±1% |
| mixing head | four oil hoses,double oil cylinder |
| Hydraulic system | Output: 10L/min system pressure 10～20MPa |
| Tank volume | 250L |
| POLY metering pump | JLB-12 |
| ISO metering pump | JLB-12 |
| compressed air needed | Dry,oil free P:0.7Mpa Q:600NL/min |
| Temperature control system | Heat: 2×9Kw(selectable 3Kw) |
| Input power | three-phase five-wire 380V |
