21Bar Screw Diesel Air Compressor Air Compressor Diesel Portable Mining Air Compressor Diesel Engine
Feature
- High Efficiency and Energy Savings: Our air compressors employ advanced technology to maximize energy efficiency. The efficient compression system reduces energy consumption, contributing to lower energy costs.
- Reliability and Durability: Built with robust materials and impeccable manufacturing processes, our air compressors ensure stable operation and an extended lifespan. This translates to reduced maintenance and dependable performance.
- Versatile Applications: Our air compressors are suitable for a wide range of applications, including manufacturing, construction, automotive repair, medical equipment, and more. Whether you need air supply, paint spraying, pneumatic tool operation, or other uses, our products meet your requirements.
- User-Friendly Operation: Equipped with an intuitive control panel, our air compressors are easy to operate and monitor. Simplified maintenance procedures empower users to effortlessly maintain equipment, ensuring it operates at its best.
- Environmentally Conscious: Our air compressors are designed with environmental considerations in mind. They feature low noise and low volatile organic compound (VOC) materials, reducing their impact on the environment.
- Custom Options: We offer a variety of models and configurations to meet different customer needs. Whether you require a small portable air compressor or a large industrial unit, we provide customized solutions.
Detail
Industrial integration has strong resistance to electromagnetic interference

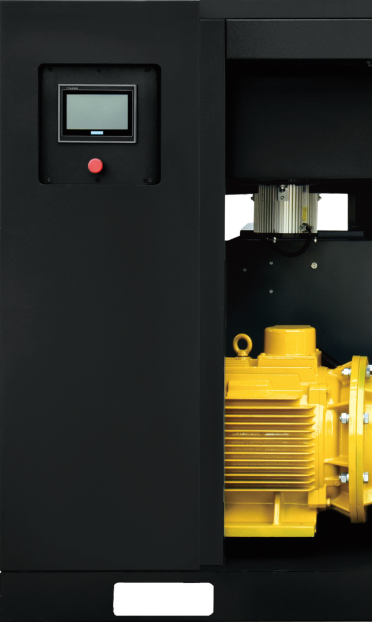

The user-friendly interface prompts the operation at a glance, and the human-machine message exchange is convenient and fast. English/ Simplified Chinese/Traditional Chinese LCD display. Real-time monitoring, providing important information, alarm, storage, and query functions. Use the industrial-grade RS485 communication interface MODBUS protocol to communicate with the host for precise communication and joint control.
Energy-saving air intake system
It adopts imported filters and high-quality filter elements; it adopts original imported energy-saving air intake capacity regulating valve, so that the air does not flow back during shutdown and does not spit out oil. It is designed with large diameter and low pressure drop. Good suction efficiency and reduced energy consumption.

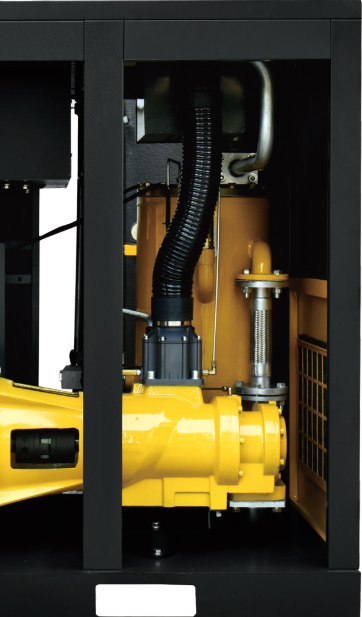

Highly efficient oil filtration system
The high-precision oil filtration system effectively filters out impurities and oil degradation products in the lubricating oil, protects the reliable operation of moving parts, and protects the long life of moving parts.
Inovance inverter (INOVANCE)
Automatically control power consumption for energy-saving control, which can significantly reduce operating costs; all brand European and American electrical components comply with CE.UL and CSA safety certifications.
Specification
|
MODEL
|
10ZV | 15ZV | 20ZV | 25ZV | 30ZV |
| Power(KW) | 7.5 | 11 | 15 | 18.5 | 22 |
| Capacity(m³/Min/MPa) | 1.3/0.7 | 1.65/0.7 | 2.5/0.7 | 3.2/0.7 | 3.8/0.7 |
| 1.2/0.8 | 1.6/0.8 | 2.4/0.8 | 3.0/0.8 | 3.6/0.8 | |
| 0.95/1.0 | 1.3/1.0 | 2.1/1.0 | 2.7/1.0 | 3.2/1.0 | |
| 0.8/1.2 | 1.1/1.2 | 1.72/1.2 | 2.4/1.2 | 2.7/1.2 | |
| Lubricant(L) | 10 | 18 | 18 | 18 | 18 |
| Noise(db(A)) | 62±2 | 65±2 | 65±2 | 68±2 | 68±2 |
| Drive Method | Y-Δ /Frequency Soft Start | ||||
| Eletric(V/PH/HZ) | 380V/50HZ | ||||
| Length | 900 | 1080 | 1080 | 1280 | 1280 |
| Width | 700 | 750 | 750 | 850 | 850 |
| Height | 820 | 1000 | 1000 | 1160 | 1160 |
| Weight(KG) | 220 | 400 | 400 | 550 | 550 |
Air compressors are widely used in manufacturing, construction, chemical, mining, and other industries. They are used to operate pneumatic equipment, for tasks such as spraying, cleaning, packaging, mixing, and various industrial processes.
